SKU: G877895-5001S

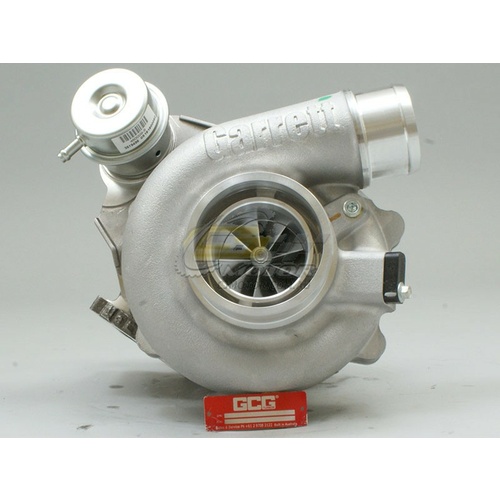

Garrett G25-550 T25 Inlet/Outlet 0.49a/r
Part Number: G877895-5001S
$3,602.00
In Stock
Description
Please purchase the item according to the manufacture part number
- Bearing Type: Ball Bearing
- Cooling System: Oil & Water Cooled
- Turbine Housing: Internally Wastegated, 0.49a/r
- Base Flange: T25 Single Entry
- Actuator: 14.7psi
- Horsepower: 300-550hp
- Displacement: 1.4L - 3.0L
Features of the Garrett G25 Series:
- Garrett® G Series Compressor Aerodynamics for maximum HP
- Fully machined speed sensor and pressure ports
- New turbine wheel aero constructed of MAR-M Alloy rated to 1055°C
- Stainless Steel Non Wastegated Turbine Housing capable of up to 1050°C
- -4AN Oil Feed Fitting with Oil Restrictor included
- Water Fittings Included
- Inlet Gasket, Oil Drain Gasket & Outlet V-Band Clamp Included
Specifications
SKU | G877895-5001S |
Brand | Garrett |
Shipping Weight | 20.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
