FP Previous RED 76HTZ TURBOCHARGER (EVO 4-9) - MHI TURBINE HOUSING
MITFPRED76HTZ-84IN-MHI
Description
*Note: Additional hardware is required to install onto Evo 4-9, see notes below.*

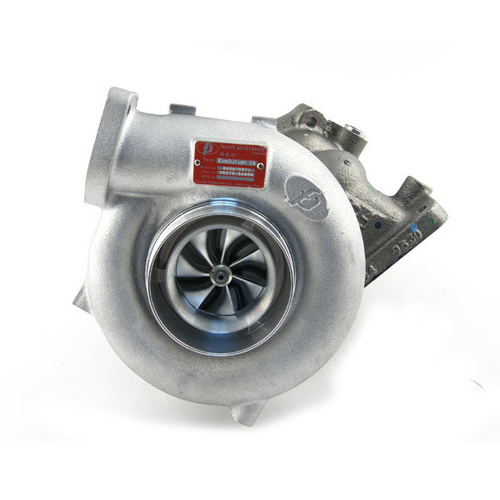

*Note: First photo shows MHI housing fitted. Other photos show FP stainless turbine housing with coating (coating by request and additional cost).*
The Red is the pennacle of street and strip turbochargers. Small enough that it doesn't take forever to build up steam but large enough to make north of 525HP.
Available with stock fitment MHI turbine housing or the new FP cast stainless turbine housing. This FP turbine housing has been designed to maximize flow while not sacrificing spool characteristics. It has a 3" outlet and has a Turbosmart 40mm/Tial MV-S wastegate flange machined directly onto the housing (wastegate not included).
The FP EVO Stainless Turbine Housing was designed for race applications where the turbocharger would be operating above 20psi. Attempting to operate below 20PSI can result in boost creep in some applications.
Fitment notes:
- Stock Evo 4-8 will need the Evo 9 fitting kit for easy installation (sold separately)
- FP Red with MHI Turbine will require an Evo 9 factory actuator or Turbosmart actuator (recommended) which are sold separately.
- FP Red with FP Stainless Housing will require external wastegate (sold separately)
- All Evo 4-9 will require the FP journal bearing oil line kit (sold separately)
- All Evo 4-9 will require aftermarket 84mm turbo inlet pipe
SPECIFICATIONS
- Compressor wheel - 76HTZ
- Flow rating - 61LB per minute
- CW Measurements - 54.8MM Inducer / 76MM Exducer
- TW Measurements - 67.3MM Inducer / 58.8MM Exducer
- Compressor Housing - 84MM Flow Advancement Port Cover (aftermarket intake required)
- Turbine Housing - FP Stainless EVO 9 Turbine Housing or MHI OEM Turbine Housing (select from dropdown)
- CHRA - FP Journal Bearing
- Oil Line - Not Included - Required for proper lubrication and available separately.
Specifications
SKU | MITFPRED76HTZ-84IN-MHI |
Brand | FORCED PERFORMANE |
Shipping Weight | 5.0000kg |
