DAVIES CRAIG Transmission Oil Cooler 30 Plate Hydra (679)
Description
Transmission Oil Cooler 30 Plate Hydra-Cool (Part #679)
The 30-Plate heavy duty Hydra-Cool Transmission Oil Cooler with its uniquely patented dimple plate and fin design offers excellent cooling efficiency for Heavy Duty 4WD, V8 and Commercial Vehicle automatic transmissions. The patented dimple plates re-direct the oil flow, and in conjunction with the unique louvered fin design provides highly efficient cooling with low-pressure drop for both race and road applications.
- 100% pressure tested at 150psi for quality assurance
- 33% more efficient than a comparable tube and fin design
- Pre-drilled mounting plates for easy installation
- Internal turbulation for efficient heat transfer
- 3/8” push-on fittings for quick and easy installation.

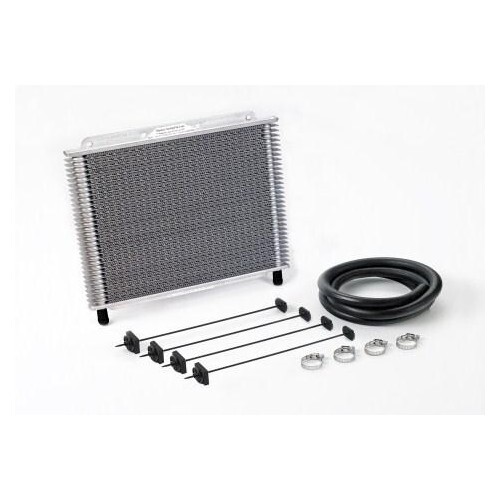

KIT CONTENTS
DESCRIPTION | UNITS |
Hydra-Cool 30-plate transmission oil cooler | 1 |
3/8” hose (1.4 meters) | 1 |
Hose clamps | 4 |
Quick Fit Kits – nylon ties x4 | 2 |
Instructions | 1 |
RANGE & SPECIFICATIONS
Part # | Plates | Thickness | Overall | Core | Inlet/Outlet | Hose Size | Heat Transfer | |||
Width mm | Height mm | Width mm | Height mm | |||||||
Power Steering Cooler | ||||||||||
1009 | Tube | 19 | 237 | 64 | 148 | 64 | 3/8” | 3/8” (9.5mm) | 4,000 | |
| ||||||||||
Ultra-Cool Transmission Oil Cooler (Tube & Fin) | ||||||||||
401 | Tube | 20 | 326 | 128 | 245 | 128 | 3/8” | 3/8” (9.5mm) | 9,000 | |
403 | 20 | 326 | 191 | 246 | 191 | 10,800 | ||||
404 | 20 | 395 | 191 | 316 | 191 | 12,000 | ||||
Hydra-Cool Transmission Oil Cooler (Plate & Fin) | ||||||||||
676 | 12 | 20 | 281 | 141 | 281 | 112 | 3/8” | 3/8” (9.5mm) | 11,987 | |
677 | 17 | 20 | 281 | 180 | 281 | 152 | 13,394 | |||
678 | 21 | 20 | 281 | 213 | 281 | 184 | 13,934 | |||
623 | 23 | 20 | 281 | 229 | 247 | 200 | 13,937 | |||
679 | 30 | 20 | 281 | 300 | 281 | 265 | 15,710 | |||
Transmission Oil Cooler & Fan Combo Kits | ||||||||||
698 (12V) | 21 | 76 | 281 | 213 | 281 | 184 | 3/8” | 3/8” (9.5mm) | 13,934 | |
699 (24V) | ||||||||||
693 (12V) | 23 | 76 | 281 | 213 | 247 | 200 | 13,937 | |||
694 (24V) | ||||||||||
691 (12V) | 30 | 76 | 281 | 300 | 281 | 265 | 15,710 | |||
692 (24V) | ||||||||||
Accessories | ||||||||||
1005 | 5/16" (8mm) Adaptor Kit - Transmission Oil Cooler to suit GM transmissions | |||||||||
1006 | Transmission Oil Cooler Fitting Kit (6R80) Suits Ford Ranger and Mazda BT50 | |||||||||
579 | Quick Fit Kits | |||||||||
0444, 0445 | Digital Thermatic / Electric Fan Switches |
TRANSMISSION OIL COOLER SELECTION
APPLICATION |
| RECOMMENDED PART | |||||||||||||||
Vehicle Type | Year of Manufacture | Engine Capacity |
| Medium Duty Part # | Heavy Duty Part # | ||||||||||||
Sedan / Wagon | Up to 1990* | Up to 2.0 litre |
| 401 | 403 | ||||||||||||
2.0 - 4.0 litre |
| 403 | 404 | ||||||||||||||
4.0 litre + |
| 404 | 676 or 677 | ||||||||||||||
Commercial | Up to 1990* | Up to 2.0 litre |
| 401 |
|
