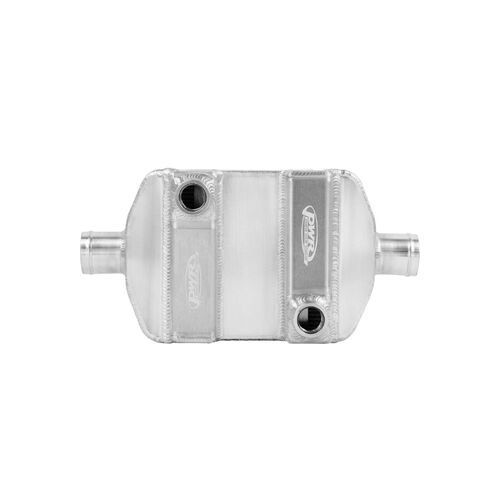

PWR Universal Elite Series Water to Oil Cooler - 68mm Generic Size w/ 38mm Outlets

If you're looking for the ultimate cooling efficiency, this is the latest in Water to Oil cooling technology to maximise your results. The thermal efficiency has been proven in the most elite race conditions worldwide and now available in a generic unit for high performance race & street applications. The PWR Water to Oil Heat Exchangers are very robust all aluminium construction units featuring complex tube & fin internal cores ideal when there is minimal space for a conventional oil cooler. Plumbed in between the cold side outlet of the radiator and inlet of the water pump, thick-wall extruded tubes carry the coolant flow, whilst the multiple pass baffle configuration within the shell guides the oil flow through a fine, yet robust turbulation fin in-between each tube. This innovative design provides maximum liquid to surface contact on both the coolant and oil passages, yet proves to be a high flowing unit to ensure minimal pressure drops in each of the fluid systems. The result is a very reliable high heat transfer oil cooler in a low pressure drop configuration made 100% in Australia from the finest materials and crafted by our passionate fabricators.

• Universal fitment for easy installation
• High heat transfer
• Low pressure drop
• Dash-10 ORB female ports for male adapters or flanged outlets depending on application
• Start of the art controlled atmosphere brazing process
• Pressure tested and guaranteed
• 1 Year manufactured warranty 100% Australian made
• 100% Australian made
• PWR can custom make to your requirements. Please let us know if you would like thermo fan mounts, fan shroud, temp switch bosses, in-tank auto cooler, external trans cooler mounts, ground welds, machined logo etching or any other custom configuration.
