SKU: daviescraig-dc5428

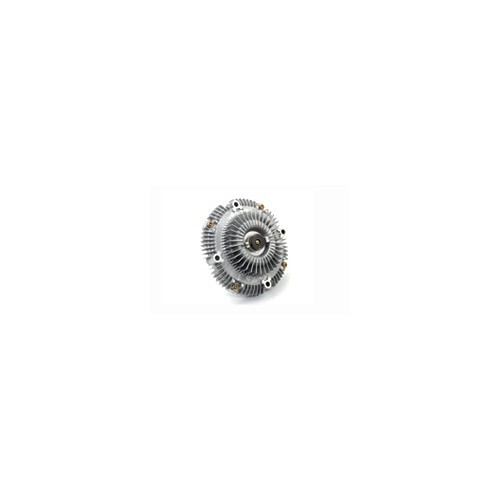

DAVIES CRAIG Fan Clutch Part No: 5428
Description
Fan Clutch - Part No: 5428
Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Thermal fan clutches have a built-in thermostat coil spring that detects the air temperature passing through the radiator and air conditioning condenser.
*PLEASE REFER TO SELECTION GUIDE
SPECIFICATIONS | |
TYPE | A |
ROTATION | CW |
OVERALL DIAMETER A | 134.0 |
PILOT DIAMETER B | 16.0 |
PILOT DEPTH C | 19.0 |
FLANGE CIRCLE D | 70.0 |
FAN MOUNT HEIGHT E | 59.0 |
FAN BOLT CIRCLE F | 122.0 |
FAN MOUNT DIAMETER G | 104.0 |
OVERALL HEIGHT H | 80.2 |
BOLT / NUT TYPE (FAN TO CLUTCH) | 6MM x 1.0 BOLT |
Specifications
SKU | daviescraig-dc5428 |
Brand | DAVIES CRAIG |
Shipping Weight | 13.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
