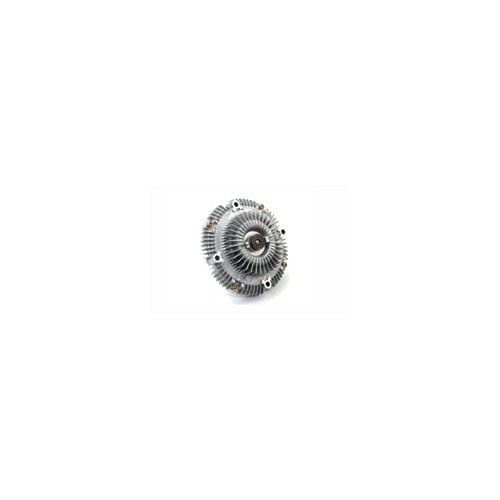

Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Thermal fan clutches have a built-in thermostat coil spring that detects the air temperature passing through the radiator and air conditioning condenser.
*PLEASE REFER TO SELECTION GUIDE
| SPECIFICATIONS | |
| TYPE | A |
| ROTATION | CW |
| OVERALL DIAMETER A | 148.7 |
| PILOT DIAMETER B | 14.2/24.9 |
| PILOT DEPTH C | 7.4/16.6 |
| FLANGE CIRCLE D | 65.5 |
| FAN MOUNT HEIGHT E | 56.1 |
| FAN BOLT CIRCLE F | 133.9 |
| FAN MOUNT DIAMETER G | 120.0 |
| OVERALL HEIGHT H | 68.8 |
| BOLT / NUT TYPE (FAN TO CLUTCH) | 6MM x 1.0 BOLT |
| SKU | daviescraig-dc5247 |
| Brand | DAVIES CRAIG |
| Shipping Weight | 13.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
