SKU: daviescraig-dc5408

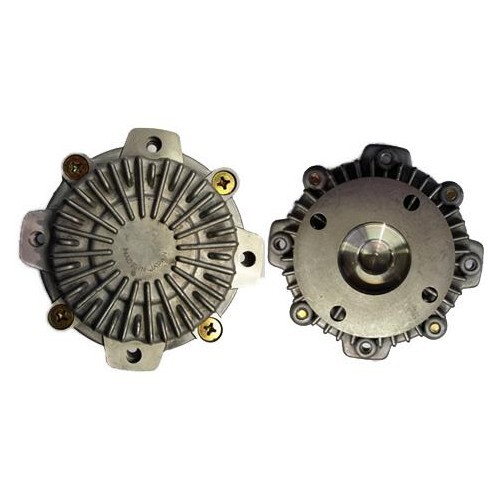

DAVIES CRAIG Fan Clutch Part No: 5408
Description
Fan Clutch - Part No: 5408
Fan clutches reduce the drain of engine power and improve the efficiency of a vehicle's cooling system. A fluid coupling devices which provide air flow through the radiator by using the water pump shaft to power a fan blade. Non-thermal fan clutches are constantly engaged and have a limited maximum spin rate.
*PLEASE REFER TO SELECTION GUIDE
SPECIFICATIONS | |
TYPE | 2 |
ROTATION | CW |
OVERALL DIAMETER (A) | 120.5 |
PILOT DIAMETER (B) | 16.0/31.7 |
PILOT DEPTH (C) | 11.5/23.5 |
FLANGE CIRCLE (D) | 71.0 |
FAN MOUNT HEIGHT (E) | 45.9 |
FAN BOLT CIRCLE (F) | 104.2 |
FAN MOUNT DIAMETER (G) | 89.8 |
OVERALL HEIGHT (H) | 61.2 |
BOLT / NUT TYPE (FAN TO CLUTCH) | 6MM x 1.0 BOLT |
*NOTE: For fittment, the Critical measurements are B, C, D & F
Specifications
SKU | daviescraig-dc5408 |
Brand | DAVIES CRAIG |
Shipping Weight | 10.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
