DAVIES CRAIG EWP150 Kit - 24V 150LPM/40GPM Remote Electric Water Pump (8061)

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

Description

EWP150 Kit - 24V 150LPM/40GPM Remote Electric Water Pump (PART #8061)

The EWP150 Alloy 24V is available for purchase in following options:

Pump Only (Part #8161)
Kit (Part #8061)
Combo with Controller (Part #8971)

Muscle up your engine cooling system with the Davies Craig EWP 150 alloy Electric Water Pump. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat.

The compact EWP150 alloy unit is manufactured with -AN16 (12) internal inlet and outlet threads for neat, tight screw-in fitting applications.
This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance accessory increases power to your vehicle’s drive wheels and improves coolant temperature control.

EWP & CONTROLLER INSTALLATION DEMONSTRATION

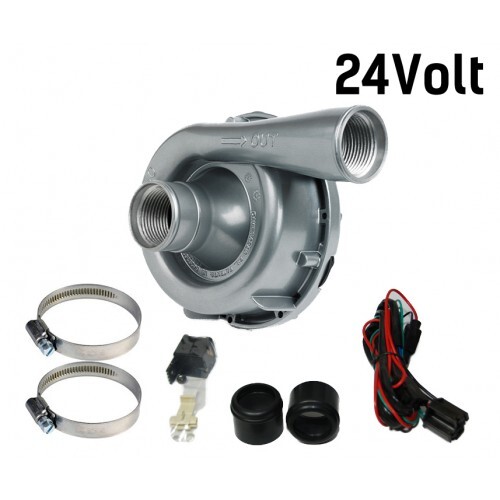

KIT CONTENTS
Description	Quantity
EWP150 Pump 24V	1
Hardware Bag	1
Rubber Sleeve 3mm	2
Hose Clamp	2
EWP Basic Pump Loom	1
EWP Universal Instructions	1

Technical Specifications
Voltage	24 Volt Pump
Operating voltage	20V DC to 24V DC
Maximum current	5.5A @ 24V
Flow rate (max)	150 L/min (39.63 US gal/min) @ 24V DC
Operating temp.	-40° to 130°C (-40° to 266°F)
Pump design	Clockwise centrifugal with volute chamber
Pump weight	1,170 grams (2.6 lb)
Pump material	Aluminium (Powder Coated)
Burst pressure	500 kPa (72.5 psi)
Seal	Ceramic face seal
Self Priming	No, none of our pumps are self-priming
Fits hose sizes	35mm to 51mm (1⅜” to 2”) Inlet & Outlet Thread: -16AN (12)
Push-On fitting Size	EWP Inlet & Outlet 38mm with 3mm Sleeve (#8510) 44mm with 6mm Sleeve (#8511) 51mm

Combined with an LCD EWP/Fan Digital Controller (Sold separately Part #8002 or combo #8971) will manage both the EWP and Thermatic fan operation. The Digital Controller will vary the speed of the EWP in response to the engine’s coolant temperature. Multiple temperature settings are provided on the Controller for either maximum power or fuel efficiency. The Thermatic Fan/s will be activated automatically once the engine coolant rises 3°C (5.4°F) above the targeted (set) temperature. The Digital Controller will automatically run on for three minutes (or to 10°C / 14°F below the set temperature) after engine shut down, eliminating ‘heat soak’ and extending engine life. The EWP80 Digital Controller Combo is supplied in a do-it-yourself kit with everything you need for fitment to your vehicle’s engine, including an easy-to-follow DIY instruction booklet.

The world’s most advanced total engine cooling management system:

universal fit

more power

more cooling

increase fuel efficiency

extend engine life

world-leading technology

EWPINSTALLATION OPTIONS

Installing an EWPas an AUXILIARY PUMP

Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose.
Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

EWP INSTALLATION – disabling Mechanical water pump

Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose and remove the manufacturer’s thermostat.
You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

In both these cases, the EWP will pump past the impeller of the mechanical water pump.

Disengaged mechanical water pump (recommended)

Remove the mechanical water pump and remove the thermostat.
Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.

Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
Install the EWP^Ò into the bottom radiator hose.

Removed mechanical water pump (Ideal)

Remove the mechanical water pump and thermostat from the engine.
Install a Davies Craig EWP Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
Install the EWP into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
Install an appropriate length belt (not supplied) to drive the accessories.

In most cases EWP will be adequately supported by the radiator hose. Where mounting is required, the EWP must be soft mounted to protect against vibration. For the EWP115, EWP130 and EWP150 Part #8700 Mounting bracket is recommended.

Product Selection Guide

Application

Pump Model

Pump Kit

Pump Combo

Controller / Switch

Part # 12 V

Part # 24 V

Part# 12 V

Part # 24 V

Part # 12 V

Part # 24 V
