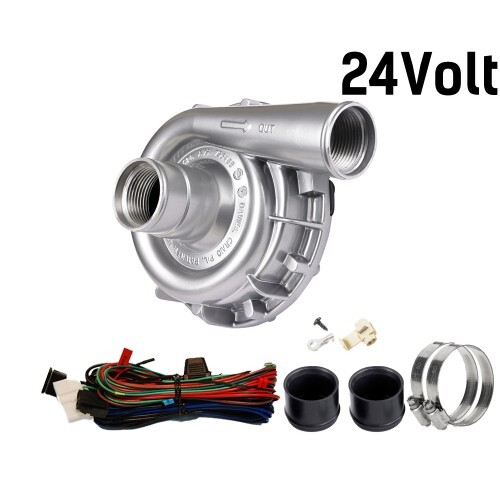

EWP115 Alloy Kit - 24V 115LPM/30GPM Remote Electric Water Pump (PART #8041)

The EWP115 Alloy 24V is available for purchase in following options:

• Pump Only (Part #8141)
• Kit (Part #8041)
• Combo with Controller (Part #8951)

The EWP115 (115 litres per minute) pump is suitable for small, medium, large, high- performance and 4WD vehicles. It’s a performance product that improves engine cooling control and capacity whilst giving you more power and torque and improved fuel economy.

The EWP115 is a practical alternative to the mechanical belt-driven pump or fitted as an auxiliary pump. Mechanical belt-driven water pumps run directly off the motor and sap engine power … the EWP115 is hardwired into your electrical system, by-passing the engine and releasing up to an additional 10kw (13hp).

 EWP & CONTROLLER INSTALLATION DEMONSTRATION

Combined with an LCD EWP/Fan Digital Controller (Sold separately Part #8002 or Combo Pack Part #8951), the pump continues to run after you’ve switched off, eliminating “heat soak” and extending engine life.

Davies, Craig’s revolutionary, Australian-designed EWP pumps are made from anti-corrosive, lightweight nylon reinforced with fibreglass. Universal fit allows for easy mounting into the bottom radiator hose. Our kits come with easy-to-understand DIY instructions and everything you need for easy installation, including different adaptors to fit various hose sizes and all necessary electrical wiring.

An Electric Water Pump is one of the most economical way to increase horsepower and save on fuel consumption whilst caring for your engine.

Used in conjunction with a Davies, Craig EWP header adaptor kit, it can replace the mechanical water pump completely.

The world’s most advanced total engine cooling management system:

 universal fit

 more power

 more cooling

 increase fuel efficiency

 extend engine life

 world-leading technology

EWP INSTALLATION OPTIONS

Installing an EWP as an AUXILIARY PUMP

• Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose.
• Remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation when the thermostat is closed. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

EWP INSTALLATION – disabling Mechanical water pump

• Leaving the mechanical water pump in place, install the EWP into the bottom radiator hose and remove the manufacturer’s thermostat.
• You will need to bypass the water pump pulley by installing an appropriate length belt (not supplied). This method makes for an easy installation.
• If running the pump continuously remove the thermostat and drill two approx. 3mm (1/8") holes in the thermostat plate to allow some coolant circulation. Re-install ensuring that the thermostat housing is clean and a new gasket is used if required.

In both these cases, the EWP will pump past the impeller of the mechanical water pump.

Disengaged mechanical water pump (recommended)

• Remove the mechanical water pump and remove the thermostat.
• Then remove the impeller from the mechanical pump shaft. Retain the mechanical water pump using the pump pulley as an idler to avoid re-routing the drive belt.

• Block any bypass passages and re-install the disengaged water pump ensuring that all gasket surfaces are clean and the new gaskets are properly fitted to prevent leaks.
• Install the EWP^Ò into the bottom radiator hose.

Removed mechanical water pump (Ideal)

• Remove the mechanical water pump and thermostat from the engine.
• Install a Davies Craig EWP Header Adaptor or blanking plate (not supplied). Ensuring the gasket surfaces are clean and the appropriate gasket or sealant is used to prevent leaks.
• Install the EWP into the bottom radiator hose. This method will require you to modify or replace the standard radiator hose.
• Install an appropriate length belt (not supplied) to drive the accessories.

In most cases EWP will be adequately supported by the radiator hose. Where mounting is required, the EWP must be soft mounted to protect against vibration. For the EWP115, EWP130 and EWP150 Part #8700 Mounting bracket is recommended.

Product Selection Guide
Application	Pump Model	Pump Kit		Pump Combo		Controller / Switch
		Part # 12 V	Part # 24 V	Part# 12 V	Part # 24 V	Part # 12 V	Part # 24 V
Motorbike up to 500cc (Standard)	EBP15	9001				0444 or 0500
Motorbike 500cc - 1000cc (Std)	EBP23	9050				0444 or 0500
Motorbike 1000cc - 2000cc (Std)	EBP25	9005				0444 or 0500
Vehicle Heater System (Standard)	EBP23	9050				0444 or 0500
LPG (Butane) System (Standard)	EBP23	9050				0444 or 0500
Intercooler (depending on capacity)	EBP23	9050
	EBP25	9005
	EBP40	9040	9041			0444 or 0500	0444 or 0500
	EWP80	8005		8807
Engines up to 2.0L (Standard)	EWP80	8005		8807		8002	8002
Engines up to 2.0L - 3.5L (Standard)	EWP115	8025 or 8040	8026 or 8041	8830 or 8850	8831 or 8851	8002	8002
Engines up to 3.5L - 5.0L (Standard)	EWP130	8080	8081	8890	8891	8002	8002
Engines 5.0L or greater (Standard)	EWP150	8060	8061	8870	8871	8002	8002
Modified Engines Supercharged/Turbo	EWP150	8060	8061	8870	8871	8002	8002
Drag Racing, Drifting & Speedway	EWP150	8060	8061	8870	8871	8002	8002
Off Road / 4WDs	EWP130	8080	8081	8890	Specifications SKU daviescraig-dc8041 Brand DAVIES CRAIG Shipping Weight 13.0000kg Shipping Width 0.500m Shipping Height 0.200m Shipping Length 0.250m More From This Category AUD$61.64 or 4 payments of AUD$15.41 with Info SKU: jrad-JWP0028 Jayrad Water Pump for Patrol GQ/GU 2.8L Add to Cart AUD$915.00 or 4 payments of AUD$228.75 with Info SKU: MEZ-WP100SHD Meziere Electric Water Pump for Chevy BB, 42GPM Heavy Duty Motor - Black Add to Cart AUD$915.00 or 4 payments of AUD$228.75 with Info SKU: MEZ-WP100UHD Meziere Electric Water Pump for Chevy BB, 42GPM Heavy Duty Motor - Polished Add to Cart AUD$91.54 or 4 payments of AUD$22.89 with Info SKU: jrad-JWP0095 Jayrad Water Pump for Maverick DA/Nissan Patrol Y60 GQ Add to Cart AUD$7.00 or 4 payments of AUD$1.75 with Info SKU: daviescraig-dc8309 DAVIES CRAIG L Adaptor 35mm Push On Fitting (8309) Add to Cart AUD$284.00 or 4 payments of AUD$71.00 with Info SKU: daviescraig-dc8001 DAVIES CRAIG EWP & FAN Digital Controller (12 & 24V) (8001) Add to Cart AUD$497.00 or 4 payments of AUD$124.25 with Info SKU: MIT-EVO9WP Water Pump w/ Gasket & O-Ring (Evo 9) Add to Cart AUD$85.17 or 4 payments of AUD$21.29 with Info SKU: jrad-JWP0127 Jayrad Water Pump for Navara D40 D22/Pathfinder R51 Add to Cart Subscribe to our newsletter CONTACT US Unit 12, 8-14, St Jude Crt, BROWN PLAIN , QLD, 4118, AU ( 61) 07 3800 8355 ABN: 58 134 888 154 Follow Us On : Encrypted Checkout CATEGORIES ACCESSORIES AERODYNAMICS BRAKES BOOKS & GIFT CLOTHING COOLING DRIVETRAIN ELECTRONICS ENGINE CATEGORIES EXHAUST FORCED INDUCTION HANDLING INTAKE INTERIOR LIGHTS OEM TYRES WHEELS INFORMATION Terms of Use Privacy Policy Returns Policy SERVICE My Account Track Order Resolution Centre ABOUT US About Us Contact Us Copyright © 2025 CJ MOTOR Contact Us Back to top × Shop Now. Pay Later. Always interest-free. Add your favourites to cart Select Afterpay at checkout Log into or create your Afterpay account, with instant approval decision Your purchase will be split into 4 payments, payable every 2 weeks All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of country offering Afterpay Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase For complete terms visit afterpay.com/terms
