DAVIES CRAIG 11" Brushless Thermatic Electric Fan (12 Volt) (0120)
Description

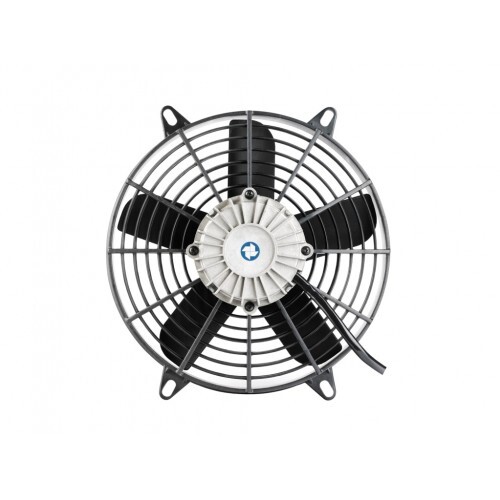

11" BRUSHLESS THERMATIC ELECTRIC FAN (12V) (PART #0120)
The 11” one-directional ‘pusher’ Brushless Thermatic Fan is a tidy compact nylon composite shroud and blade with a long-life brushless motor (10,000 hours). This style of brushless Thermatic Fan suits air conditioning/condenser applications in 12 Volt Applications only.
Davies, Craig’s Thermatic Fans offer the same high performance air flow feature that has been offered by Davies, Craig electric fans to the automotive industry for the past forty five years. This low-profile, high performance brushless 11” Thermatic Fan supplies constant powerful, high air flow which increases cooling/ heat exchange efficiency.
SPECIFICATIONS | COMPONENTS | |||
Airflow | 1050 CFM (ft3/min) | #0120 |
11" Brushless Thermatic Fan (12 volt) |
|
Maximum current |
11.0A (12 Volt) |
|||
Weight | 2.2 kg (4.9 lb) | |||
Dimensions |
Height = 315mm Width = 305mm Depth = 98mm |
Davies, Craig Thermatic Fans can be used as either a primary or secondary source of engine and air-conditioning cooling;
- Economical replacement for failed Original Equipment (OE) electric fan.
- 5-10% increase in engine power and fuel saving when replacing the original fan clutch and/or mechanical belt-driven fan assemblies
- Operated in conjunction with our Electric Water Pump (EWP) & LCD EWP/Fan Digital Controller
- Compatibility with all Davies Craig thermal controlled electric switches
- Constant air flow regardless of vehicle engine speed
- Wide variety of applications
UNIVERSAL FAN FITTING KIT (sold separately]
SINGLE FAN MOUNTING HARDWARE KIT (12V) (1000)
SINGLE FAN MOUNTING HARDWARE KIT (24V) (1001)
DUAL FAN MOUNTING KIT - UNIVERSAL 12V (1002)
DUAL FAN MOUNTING KIT - UNIVERSAL 24V (1003)
FAN & TRANS OIL COOLER MOUNTING HARDWARE (UNIVERSAL) (0578)
The Davies, Craig Universal Fan Fitting Kit includes all parts necessary for mounting and wiring any 12- and 24-volt electric fans
– all Davies, Craig Thermatic Fans and other electric fan models.
THERMATIC / ELECTRIC FAN RANGE
Thermatic / Electric |
12 Volt |
24 Volt |
Airflow |
Max Current |
Weight |
Height (mm) |
Width (mm) |
Depth (mm) |
Part # |
Part # |
|||||||
8” Thermatic Fan |
0135 |
0136 |
400 CFM |
5.0A (12 Volt) 2.4A (24 Volt) |
0.88 kg 1.9 lb |
211 |
213 |
56 |
9” Thermatic Fan |
0160 |
0161 |
591 CFM |
6.5A (12 Volt) 3.25 (24 Volt) |
0.93 kg 2 lb |
242 |
250 |
55 |
10” Thermatic Fan |
0145 |
0146 |
693 CFM |
7.0A (12 Volt) 3.5A (24 Volt) |
1.13 kg 2.5 lb |
270 |
290 |
64 |
10” Slimline Thermatic Fan |
0147 |
0148 |
696 CFM |
7.0A (12 Volt) 3.5A (24 Volt) |
1.13 kg 2.5 lb |
278 |
275 |
56 |
11” Brushless Thermatic Fan |
0120 |
N/A |
1050 CFM |
11.0A (12 Volt) |
2.2 kg 4.9 lb |
315 |
305 |
98 |
12” Thermatic Fan |
0162 |
0163 |
847 CFM |
9.0A (12 Volt) 4.5 (24 Volt) |
1.45 kg 3.2 lb |
293 |
293 |
58 |
14” Brushless Thermatic Fan |
0140 |
N/A |
1021 CFM |
8.0A (12 Volt) |
2.2 kg 4.85 lb |
350 |
348 |
120 |
14” Slimline Thermatic Fan |
0164 |
0165 |
1021 CFM |
11.0A (12 Volt) 5.5 (24 Volt) |
1.5 kg 3.3 lb |
350 |
348 |
76 |
14” Hi-Power Thermatic Fan |
0107 |
0108 |
1500 CFM |
13.0A (12 Volt) 6.5 (24 Volt) |
2.5 kg 5.5 lb |
350 |
348 |
94 |
16” Thermatic Fan |
0166 |
0172 |
2120 CFM |
19.0A (12 Volt) 9.5 (24 Volt) |
3.0 kg 6.6 lb |
400 |
424 |
97 |
Optional Parts
Application | Part Number | Description |
Switches / Controllers | 0444 | Digital Thermatic Fan Switch (12V & 24V) |
0401 | Mechanical Thermal Switch (12V & 24V) | |
8000 | LCD EWP & Fan Controller(12V & 24V) |
Specification
Voltage: |
12V |
Rated Current: |
11A |
Category: |
Brushless Motor |
Maximum Air Flow: |
1050 CFM |
Rotation: |
Clockwise |
Rated RPM: |
2600 +/- 100 RPM |
Maximum Noise: |
80dB |
Air flow direction: |
Pusher / Upstream |
Weight: |
2.27 kg |
Rated Power: |
140W |
Material: |
66 Nylon Glass |
