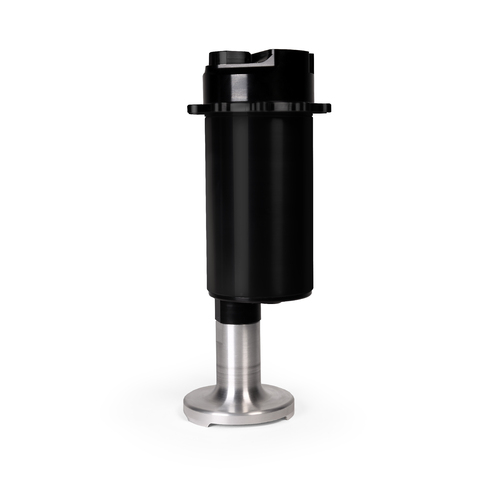

Brushless Eliminator In-Tank Fuel Pump with Variable Speed Controller(18051)
AEROMOTIVE fuel pump 18051
Description
Description
Image is not an accurate representation of this product.
Aeromotives line of brushless pumps are available with two different built-in controllers: the Standard Configuration of Aeromotives Brushless Controllers, which provides continuous full-speed operation, and the New True Variable Speed Controller (TVS), which offers the advantages of pump speed control vial a 0-5V analog DC input signal. The TVS Controller capitalizes on our existing brushless technology by reducing fuel flow during low-demand and decreasing an already low current draw, therefore minimizing the introduction of heat even further. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Additional information
Weight | 6.5 lbs |
---|---|
Dimensions | 8.25 x— 7 x— 6.5 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 18051: Brushless Eliminator In-Tank Fuel Pump with Variable Speed Controller
Eliminator Performance Plus Advanced Technology
Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10″ deep custom fuel cell.
- The Eliminator performance you expect and more:
- Fuel Injected Engines:
up to 1900 FWHP - naturally aspirated
up to 1400 FWHP - forced air induction - Carbureted Engines:
up to 2300 FWHP - naturally aspirated
up to 1700 FWHP - forced air induction
- Fuel Injected Engines:
- E85 Compatible, reduce max FWHP by 30%
- Lighter than the traditional Eliminator pump.
- Reduced current draw at higher, EFI pressures.
- Extended service life in methanol and ethanol.
- Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
- Quieter than the traditional Eliminator Pump.
- ORB-10 outlet port.
- Requires straight 12-VDC to 16-VDC power supply.
- Not compatible with pulse modulated systems or fuel pump speed controllers.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Aeromotives True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.
EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Specifications
SKU | aeromotive-18051 |
Brand | AEROMOTIVE |
Shipping Weight | 25.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
