Description

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

• Flows up to 12 GPM
• 5,000+ HP on gas, up to 2500 HP methanol.
• High efficiency, Gerotor pumping mechanism.
• Tough, Type III hard coat anodized body.
• This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
• CNC Machined from 6061 T6 aircraft aluminum.
• Includes both 1.25′ barb and AN-16 Male inlet.
• ORB-12 female outlet port.

Additional information

Mounting Configuration: External

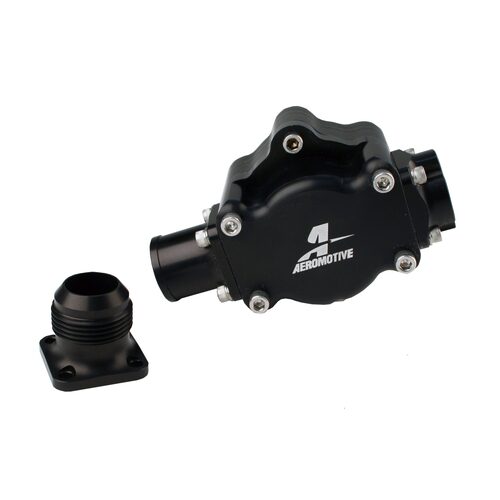

P/N 11115: 12 Series Belt Drive Fuel Pump
12-GPM Belt Drive Mechanical Fuel Pump

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

• Flows up to 12 GPM
• 5,000+ HP on gas, up to 2500 HP methanol.
• High efficiency, Gerotor pumping mechanism.
• Tough, Type III hard coat anodized body.
• CNC Machined from 6061 T6 aircraft aluminum.
• Includes both 1.25′ barb and AN-16 Male inlet.
• ORB-12 female outlet port.

EFI applications require high-flow return style regulators:
P/N ,  ,  or  .

Sold Separately:
Mounting Bracket: P/N 11706
Cog Pulley: P/N .
Electric Priming/Starting Kit:  P/N
