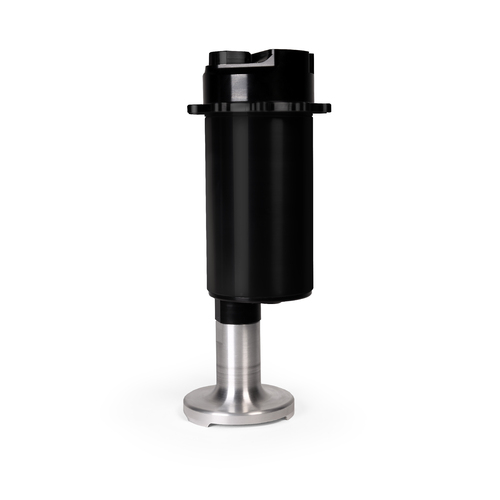

Brushless 5.0 Spur Gear Pump w/Fuel Cell Pickup& Variable Speed Controller 18046

Description

Image is not an accurate representation of this product.

Aeromotives True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

Mounting Configuration: External

P/N 18046: Brushless 5.0 Spur Gear Pump with Fuel Cell Pickup and Variable Speed Controller

Designed as a direct drop-in replacement for the any Aeromotive Stealth Fuel Cell, including COPO, Cobra Jet or Drag Pak race cars. This configuration is also a great option when building a 10″ deep custom fuel cell.

• Supports
  • Fuel injected engines:
    up to 3400 FWHP - naturally aspirated
    up to 2600 FWHP - forced air induction
  • Carbureted engines:
    Up to 3600 FWHP - naturally aspirated
    Up to 2700 FWHP - forced air induction
• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional Pro-Series pumps.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Aeromotives True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

EFI Rated flow of 1,700 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,850 lbs./hr. @ 9 psi, 13.5 volts
