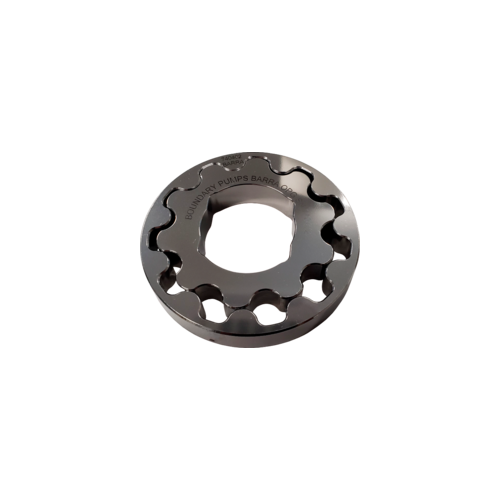

Boundary Ford Barra XR6 Billet Oil Pump Gears
Description
Item: Boundary Ford Barra XR6 Billet Oil Pump Gears
Gears Designed for Extreme Applications
We use advanced FEA simulations to break down each oil pump for weaknesses. We test the pumps against the worst case scenarios: debris impacts, vibration, and offside loads. Then we rebuild the part over and over again until the gear is as strong as we can make it. Our gears have survived 1/4 in and larger debris impacts. Our gears have survived the number 1 crank cap coming apart and the pump housing splitting in half. The gears themselves though? Those were loaded into another housing and away the assembly went to race day.
Boundary Ford Barra XR6 Billet Oil Pump Gears
Boundary oil pump gears are 100% manufactured in our Dallas, Texas production facility. We start by quenching our chromoly billets from extreme heat and then temper it to tough indestructible core. After machining we apply our ColdFlow surface hardening process and complete it to a Mirror Finish. What does all this give you? It gives you a pump with stability over 9000 RPM, proven in excess of 1500whp, with higher efficiency, less friction, and backed by one of the industries best warranty’s.
Oil Pump Gear Features
-
Mirror Finished and Surface Hardened
-
Surface Ground gears for the ultimate in fitment and performance
-
Indestructible chromoly core
-
Inner and outer gear machined in matched sets
-
Our own race inspired gerotor design for flow and strength
-
Tighter fitting crank mate for a more durable design
- Each set is hand, machine, and hardness inspected with Blueprinting Report
BACKING PLATE SOLD SEPARATELY
Specifications
SKU | BA-OPG |
Brand | BOUNDARY |
Shipping Weight | 5.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
