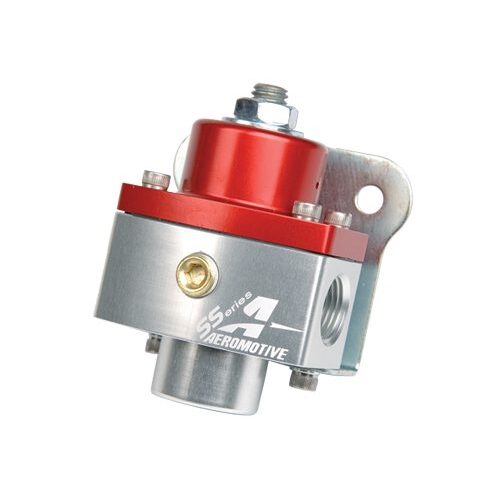

AEROMOTIVE SS-Series 3/8? NPT Carburetor Regulator(13205)
AEROMOTIVE fuel pressure regulator 13205
Description
Description
Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator.
- Adjustable from 5-10 PSI.
- P/N 13205 provides 3/8? NPT inlet/outlet ports.
- 1/8? NPT gauge port.
- Regulator re-seats when the needle and seat closes, preventing pressure creep.
- Includes mounting bracket
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Not rated for alcohol fuels, ethanol or methanol.
Additional information
Weight | 0.89 lbs |
---|---|
Dimensions | 5.5 × 5.5 × 2.75 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 13205 SS-Series 3/8? NPT Carb Regulator
Dead-Head Regulator for up to 750 FWHP on gas.
Specifically designed for carbureted street or racing engines on gasoline, the SS-Series adjustable regulator offers higher flow, quicker response and less pressure creep than competing two-port designs. Popular in circle track applications up to and including NASCAR® level horsepower and as a dedicated nitrous regulator.
- Adjustable from 5-10 PSI.
- P/N 13205 provides 3/8? NPT inlet/outlet ports.
- Dedicated 1/8? NPT gauge port.
- Regulator re-seats when the needle and seat closes, preventing pressure creep.
- Mounting bracket included.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Not rated for alcohol fuels, ethanol or methanol.
Fitting only kits available:
- : 3x 3/8? NPT to AN-06 port fittings.
- : 3x 3/8? NPT to AN-08 port fittings.
Specifications
SKU | aeromotive-13205 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
