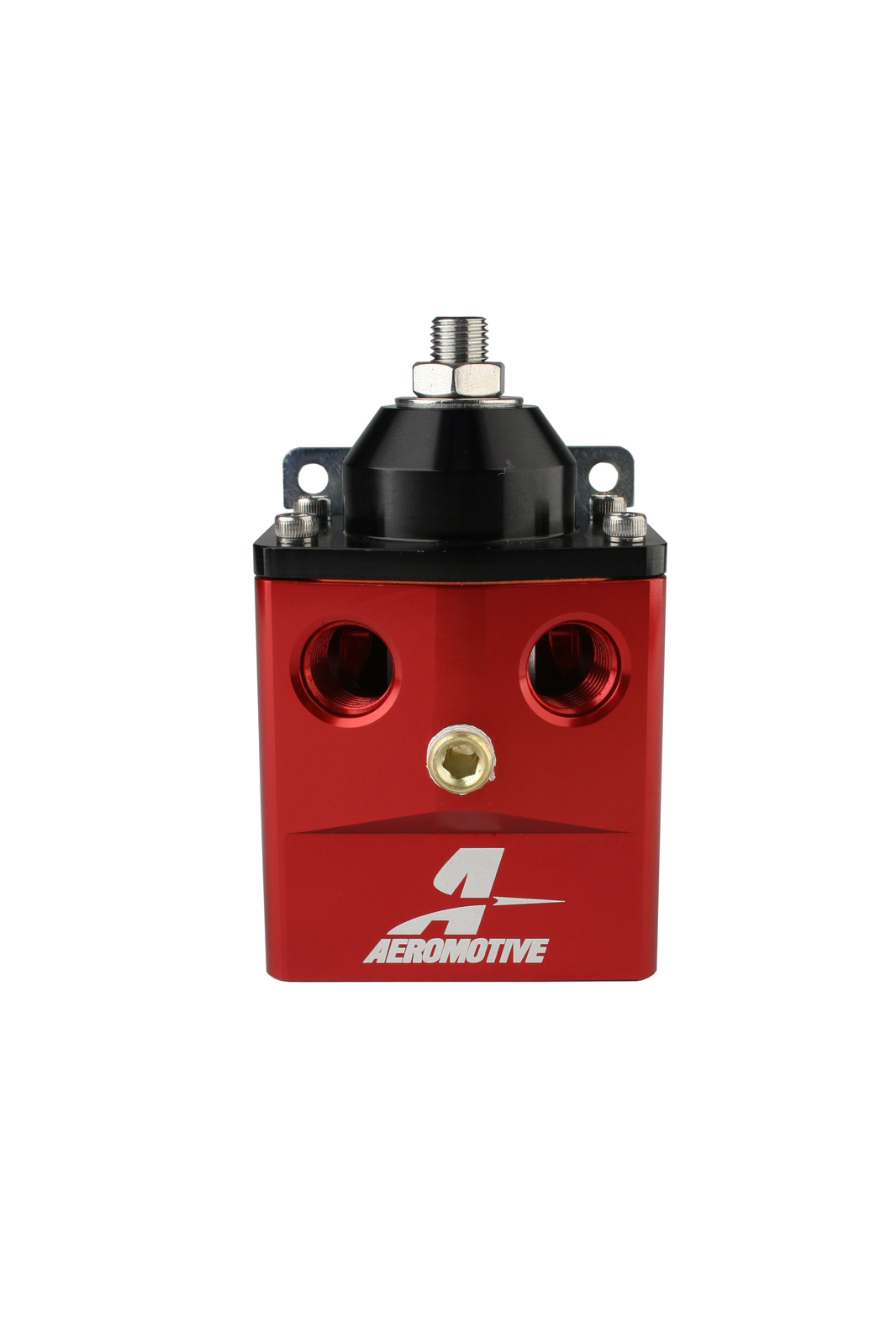

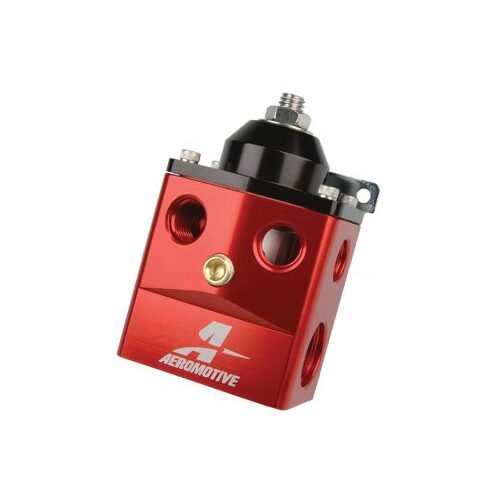

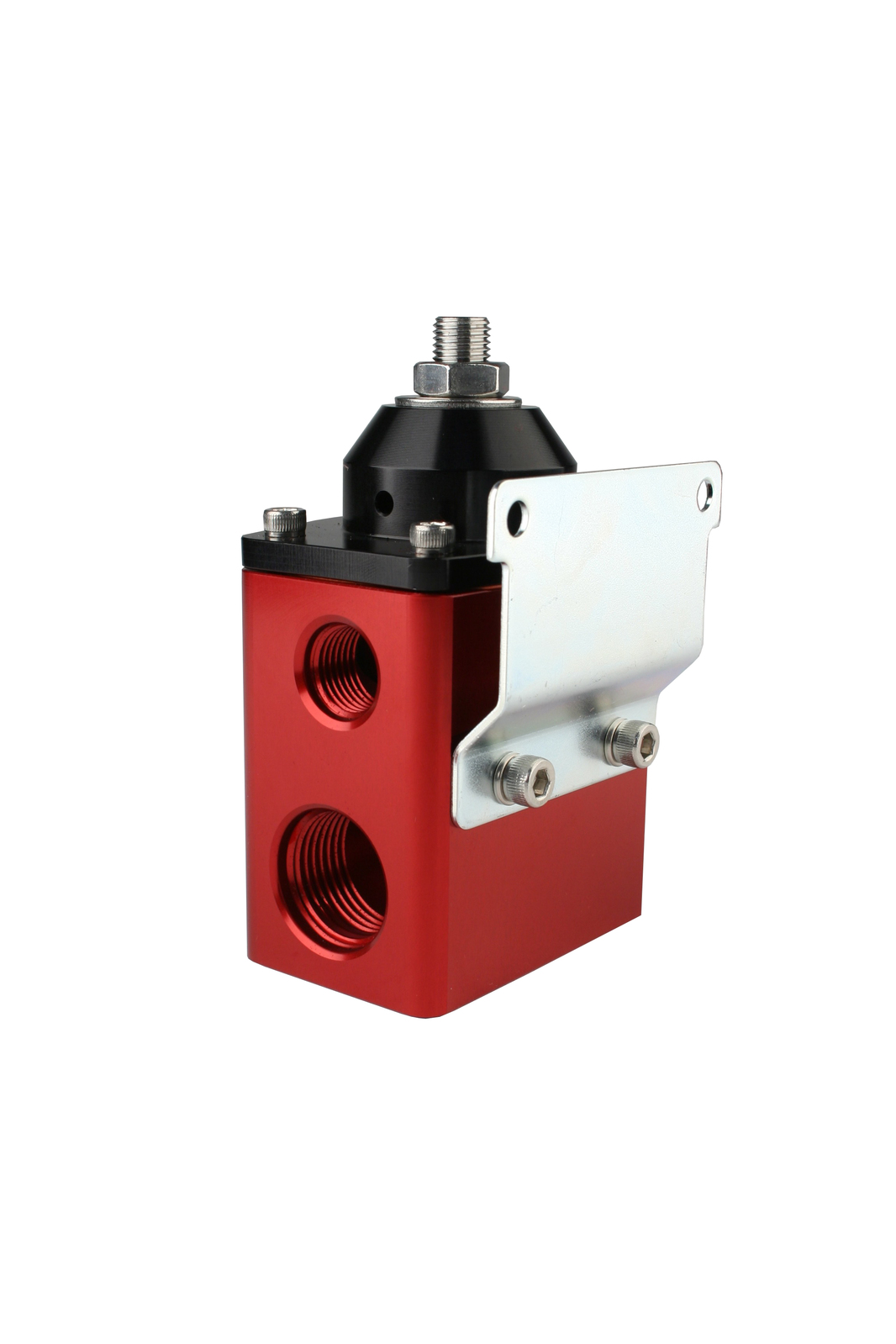

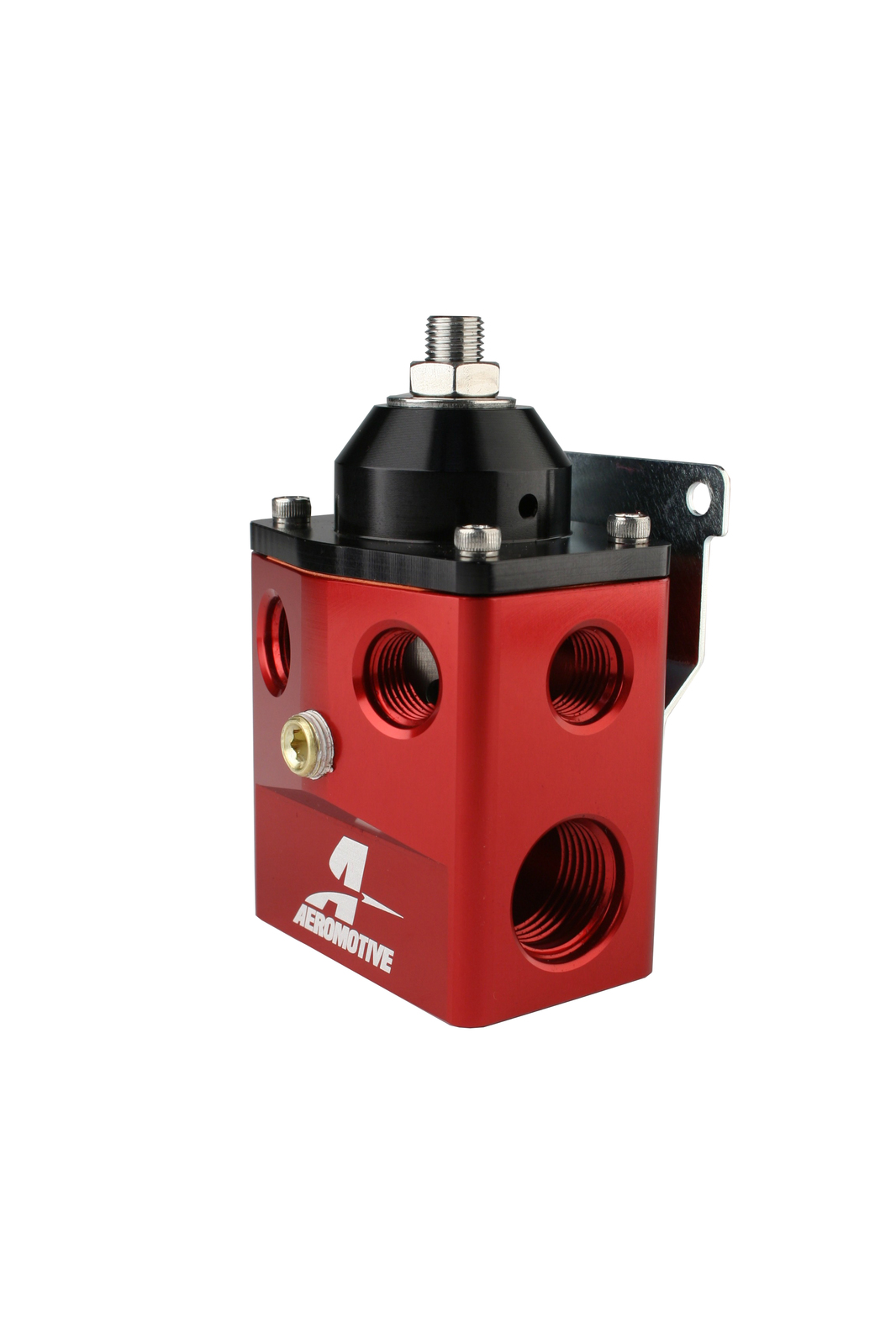

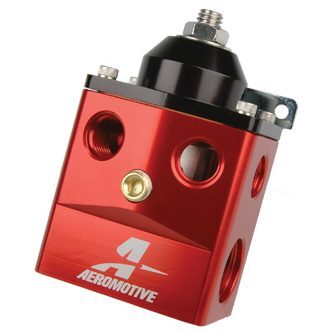

AEROMOTIVE A4 Carbureted Regulator(13203)
AEROMOTIVE fuel pressure regulator 13203
Description
Description
The only four-port regulator on the market that uses a ‘soft-seat’ design, eliminating pressure creep at idle and, if used, on a throttle stop. Used by many of the best ‘Super’ class racers in the world. This exclusive design ensures the precise pressure control needed for more consistent E.T.s. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Adjustable from 5-15 PSI.
- Gasoline and alcohol compatible.
- Standard static flow design, no return line required.
- (4) ORB-06 outlet ports and 1/8? NPT gauge port.
- (2) ORB-10 inlet ports for plumbing flexibility.
Additional information
Weight | 1.41 lbs |
---|---|
Dimensions | 5.5 × 5.5 × 2.75 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 13203: A4 Carbureted Regulator
The only four-port regulator on the market that uses a ‘soft-seat’ design, eliminating pressure creep at idle and, if used, on a throttle stop. Used by many of the best ‘Super’ class racers in the world. This exclusive design ensures the precise pressure control needed for more consistent E.T.s. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Adjustable from 5-15 PSI.
- Gasoline and alcohol compatible.
- Standard static flow design, no return line required.
- (4) ORB-06 outlet ports and 1/8? NPT gauge port.
- (2) ORB-10 inlet ports for plumbing flexibility.
Specifications
SKU | aeromotive-13203 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
