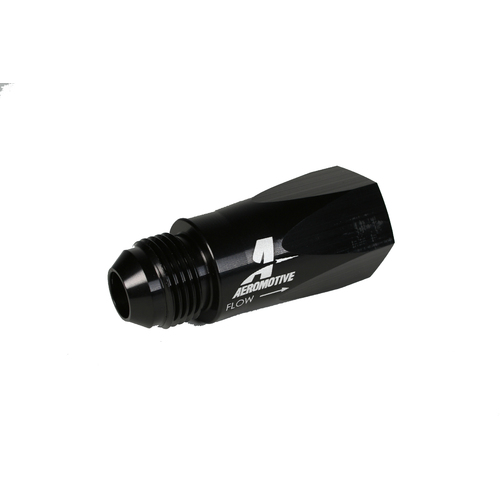

AEROMOTIVE One-Way AN-10 Check Valve(15107)

Description

High flow one-way check valves designed to prevent back-flow with minimal pressure drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual pumps are used and both pumps may not run simultaneously.

• CNC-machined billet aluminum and Type II bright dip black anodized finish.
• AN-10 male inlet, ORB-10 female outlet connections.
• Ideal configuration for easy installation into filter or fuel pump outlet port, no need for additional lines, hose-ends or fittings.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Suitable for use with gasoline fuels only, not alcohol compatible.
• Use AN-10 o-rings P/N 15623 for installation into ORB-10 port.
• Compatible ORB-10 to AN outlet adapters include:
  • ORB-10 to AN-12:  P/N 15642
  • ORB-10 to AN-10:  P/N 15608
  • ORB-10 to AN-08:  P/N 15610
  • ORB-10 to AN-06:  P/N 15609

Additional information

Mounting Configuration: External

P/N 15107 AN-10 One-Way Check Valve
AN-10 inlet to ORB-10 outlet

• For installation after pump, before regulator.
• Requires ORB-10 to AN outlet fitting.
• Gasoline only, not rated for alcohol fuels.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
