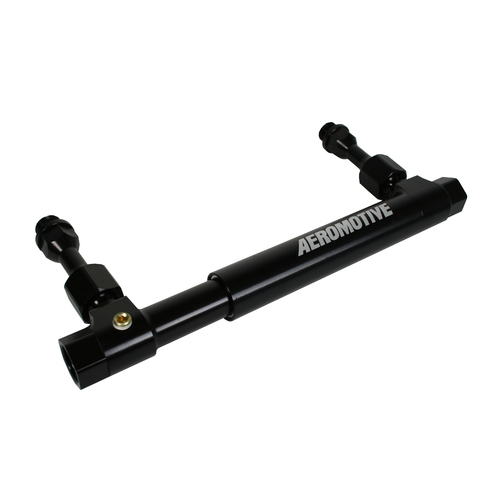

AEROMOTIVE Dual Action Carburetor Fuel Log (Ultra HP Style)(14203)
AEROMOTIVE accessories 14203
Description
Description
Billet, double adjustable, carburetor fuel logs for superior fitment. The advantage of a company that understands engineering, design, and manufacturing, is peace of mind. When you buy a fuel log from Aeromotive, you can be assured they will fit and deliver as promised.
- Threaded with 3/4? – 16 ORB-10 (o-ring boss) for proper sealing on carburetors like the Holley Ultra-HP and those with similar float bowls.
- Carburetor inlets swivel + or – 20 degrees in all directions for optimum clearance from valve cover and intake runners.
- Telescoping center line is 7.700? to 13.450? adapts to standard and high capacity float bowls.
- ORB-10 inlet and outlet ports can be adapted from AN-12 to AN-06 with available Aeromotive ORB port fittings.
- Two 1/8? NPT ports for gauges and/or pressure transducers.
- 1.056/.806? ID bore for high flow capacity.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Type II bright-dip black anodized finish for durability and great looks.
Additional information
Weight | 1.48 lbs |
---|---|
Dimensions | 18 × 6.75 × 1.5 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N: 14203 Dual Action Carburetor Fuel Log
- Engineered for Carbs like the Holley Ultra HP with ORB-10 or 3/4?x16, o-ring float bowls.
- Slip style length adjustment allows fitment to both 4150 and 4500 style carburetors.
- Ball and Socket adjustment permits the log to be manipulated vertically for better clearance.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
For stand-off conversion to other carburetor applications:
- P/N 14001 Standard Holley 7/8? – 20 bowls.
- P/N 14002 Demon Style 9/16? – 24 bowls.
For rebuild/reseal kit:
- P/N 14001
