Description

High flow one-way check valves designed to prevent back-flow with minimal pressure drop. Ideal to prevent drain back after the fuel pump is turned off, or when dual pumps are used and both pumps may not run simultaneously.

• CNC-machined billet aluminum and Type II bright dip black anodized finish.
• AN-06 male inlet, ORB-06 female outlet connections.
• Ideal configuration for easy installation into filter or fuel pump outlet port, no need for additional lines, hose-ends or fittings.
• Suitable for use with gasoline fuels only, not alcohol compatible.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Use AN-06 o-rings P/N 15621 for installation into ORB-06 port.
• Compatible ORB–06 to AN outlet adapters include:
  • ORB-06 to AN-08:  P/N 15649
  • ORB-06 to AN-06:  P/N 15606

Additional information

Mounting Configuration: External

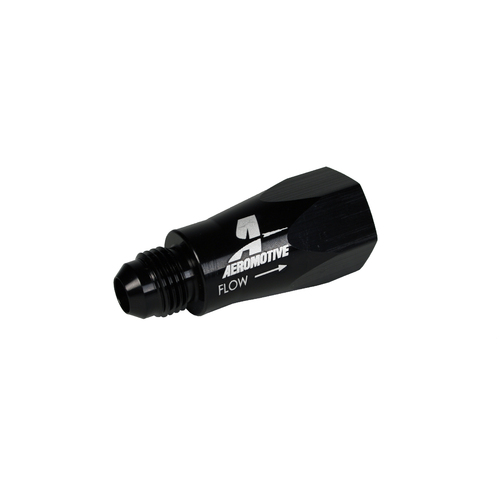

P/N 15106 AN-06 One-Way Check Valve
AN-06 inlet to ORB-06 outlet

• For installation after pump, before regulator.
• Requires ORB-06 to AN outlet fitting.
• Gasoline only, not rated for alcohol fuels.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
