SKU: aeromotive-18363

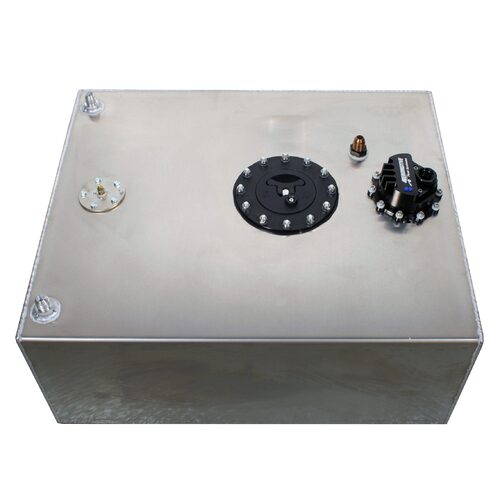

AEROMOTIVE Eliminator Brushless Fuel Cell – 20 Gallon(18363)

AEROMOTIVE stealth fuel system 18363

$3,779.23


In Stock


Calculate Shipping



Australia wide rate - $55.00

Description

Description

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The same Eliminator Fuel Pump the world has come to trust and depend on, now available with the latest brushless-motor technology. Built for up to 65 psi of sustained pressure, featuring our bedrock solid, dual chamber roller vane design that primes easily, reduces friction and improves efficiency.

  • For EFI applications use regulator P/N 13305 or P/N 13134.
  • For carbureted applications use regulator P/N 13202 or P/N 13212.
  • 25% more flow at pressure than our A1000 Brushless Fuel Pump.
  • Perfect for ‘blow-through’ carbureted engines up to 1,700 FWHP.

Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump).  With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve.  Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.

Additional information

Weight 32 lbs
Dimensions 14 × 22 × 28 in

Mounting Configuration: In Tank

CARB or EFI Power Adder FUEL Horsepower
EFI Naturally Aspirated Gas 1900
EFI Naturally Aspirated E85 1330
CARB Naturally Aspirated Gas 2300
CARB Naturally Aspirated E85 1610
EFI Forced Induction Gas 1400
EFI Forced Induction E85 980
CARB Forced Induction Gas 1700
CARB Forced Induction E85 1190

P/N 18363 Eliminator Brushless Stealth Cell – 20 Gal
Eliminator Performance Plus Advanced Technology

20-gallon Street/Strip Fuel Cell with Stealth Eliminator Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and MOPAR Drag Pack cars.

  • Baffled design keeps fuel at the pump inlet
  • Fluted pickup with integrated 100-m prefilter
  • The Eliminator performance you expect and more:
    • Fuel Injected Engines: GAS
      up to 1900 FWHP – naturally aspirated
      up to 1400 FWHP – forced air induction
    • Carbureted Engines: GAS
      up to 2300 FWHP – naturally aspirated
      up to 1700 FWHP – forced air induction
    • Fuel Injected Engines: E85
      up to 1330 FWHP – naturally aspirated
      up to 980 FWHP – forced air induction
    • Carbureted Engines: E85
      up to 1610 FWHP – naturally aspirated
      up to 1190 FWHP – forced air induction
  • Lighter than the traditional Eliminator pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • Quieter than the traditional Eliminator pump.
  • ORB-10 outlet port.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.
  • Fuel Cell Dimensions: 20?w x 24?l x 10?h
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts

Available with Brushless Eliminator, Pro and Pro-Plus Spur Gear pumps, and in 6 and 15 gallon versions.

Specifications

SKU aeromotive-18363
Brand AEROMOTIVE
Shipping Weight 35.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.300m
