SKU: aeromotive-13105

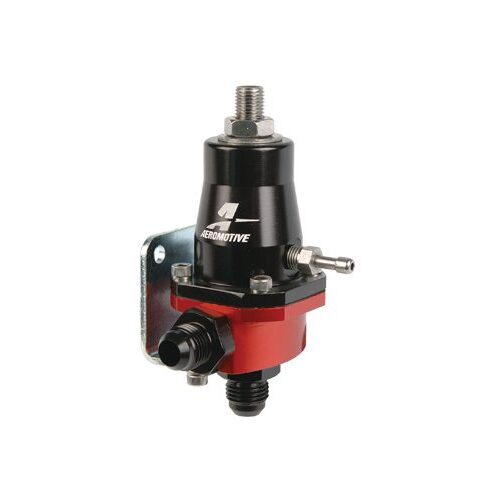

AEROMOTIVE Compact EFI Regulator(13105)
AEROMOTIVE fuel pressure regulator 13105
Description
Description
Big performance in a small package. The Compact EFI Regulator is designed for applications producing up to 1,000 HP where space is at a premium. Ideal for EFI fuel delivery systems that are limited to one regulator inlet port.
- Adjustable from 30-70 PSI.
- Equipped with removable AN-6 male fittings for inlet and outlet ports, eliminates the need to buy additional fittings and O-rings.
- Dedicated, 1/8? NPT gauge port located opposite the side inlet.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
Additional information
Weight | 0.75 lbs |
---|---|
Dimensions | 5.5 × 5.5 × 2.75 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
Big performance in a small package. The Compact EFI Regulator is designed for applications producing up to 1,000 HP where space is at a premium. Ideal for EFI fuel delivery systems that are limited to one regulator inlet port.
- Adjustable from 30-70 PSI.
- Equipped with removable AN-6 male fittings for inlet and outlet ports, eliminates the need to buy additional fittings and O-rings.
- Dedicated, 1/8? NPT gauge port located opposite the side inlet.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Fuel pressure rises on a 1:1 ratio when referencing boost.
Specifications
SKU | aeromotive-13105 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
