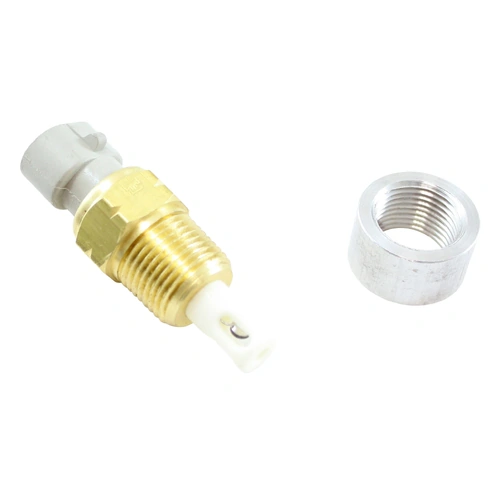

AEM Air Temp Sensor with 3/8" NPT Male Thread AEM ELECTRONIC 30-2010
AEM ELECTRONIC 30-2010
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
Features:
- Weatherproof connector
- Includes mating connector & pins
- Senses the air temperature on the inlet side of the engine

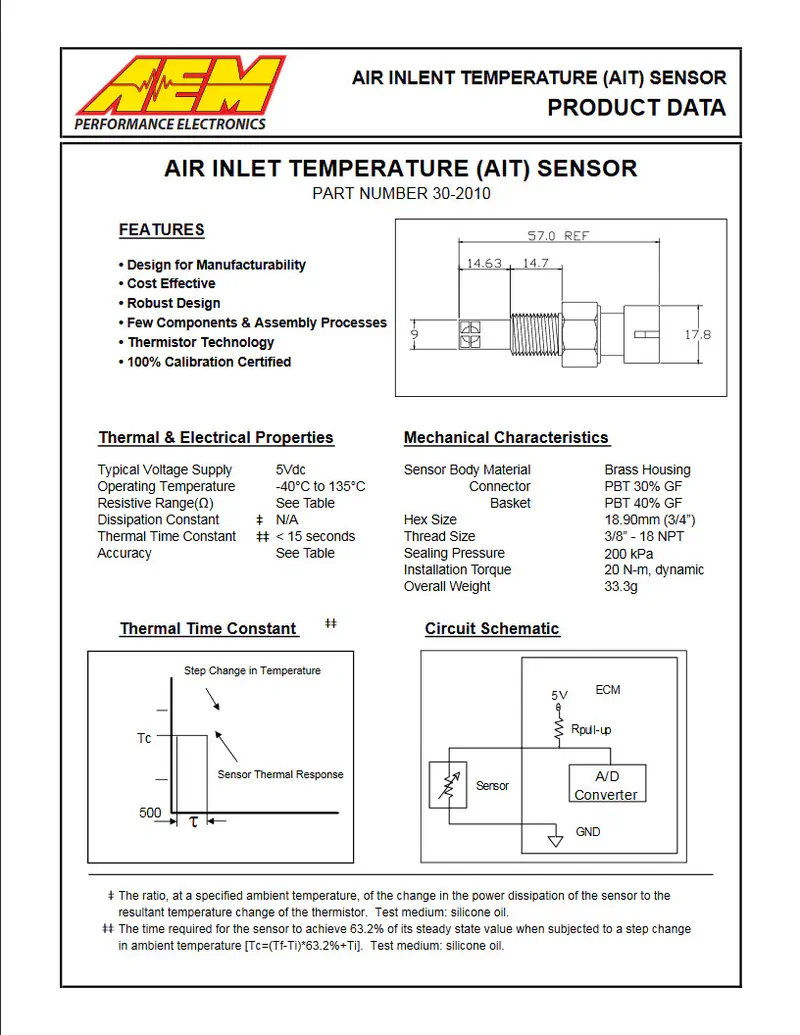

Technical Specifications
- Accuracy: < 1.5°C / 2.7°F
- Operating Temp: -40C to 135C / -40F to 275F

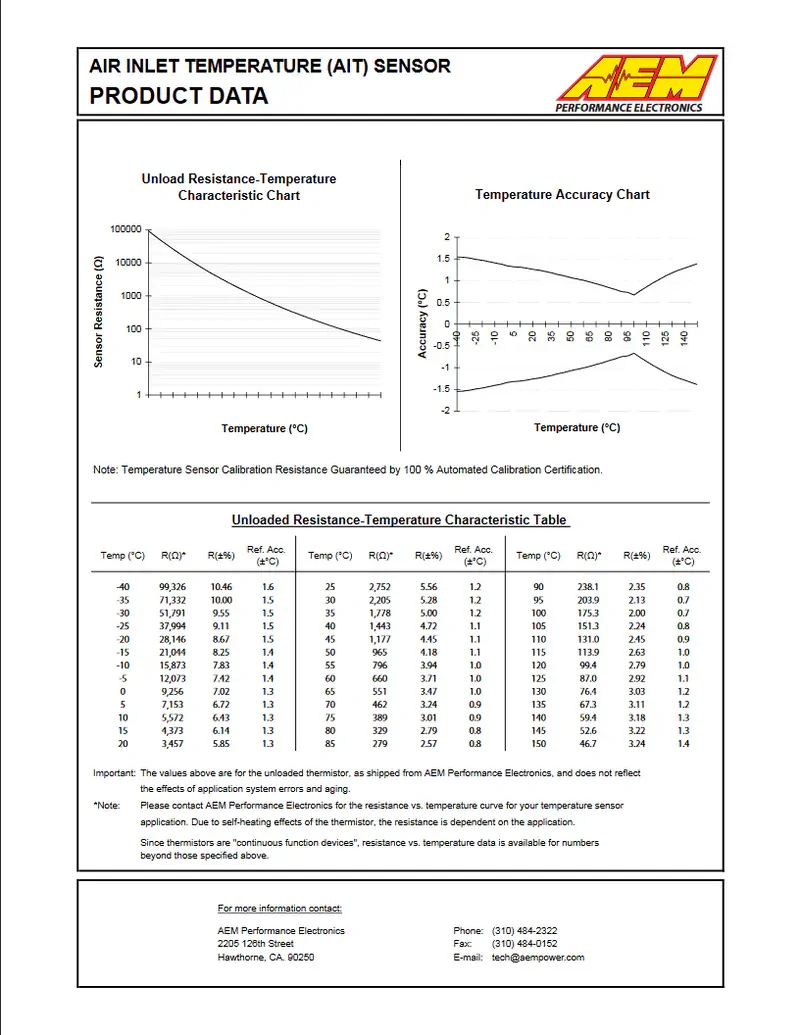

- Resistive Range (Ω): See Table
- Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
- Sensor Body Material: Brass
- Thread: 3/8" NPT
- Hex Size: 3/4"
- Installation Torque: 20Nm / 15 ft-lbs
- Weight: 33.3g
- Electrical Termination: Weatherproof connector. Includes Mating Connector, Pins & Wire Seals

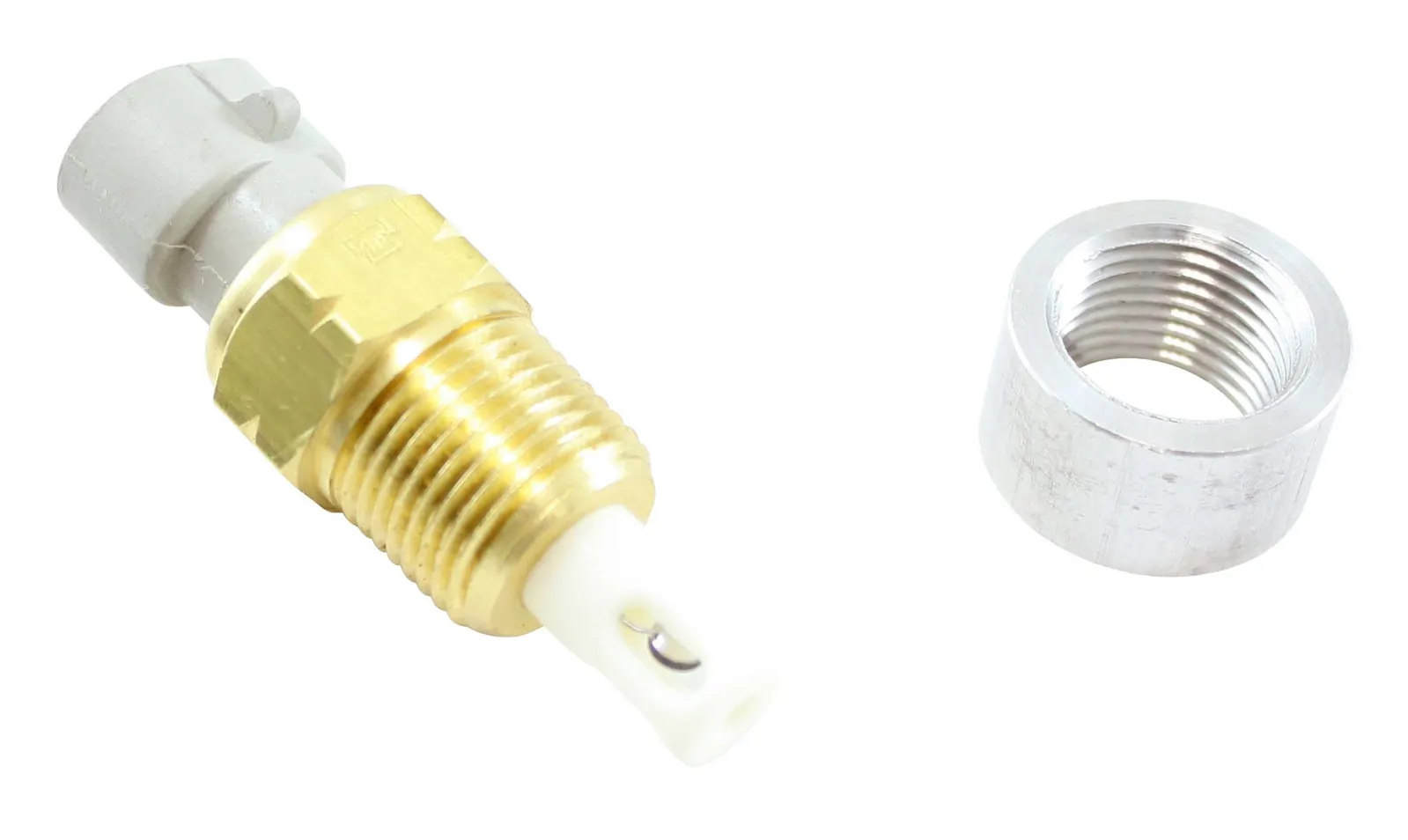

- Includes: Air Temp Sensor, 3/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
Fitment Table
Universal Fit
This product may require modification.
(30-2010)
