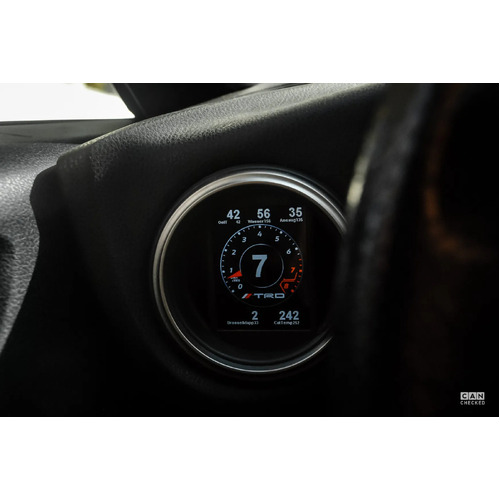

CANchecked offers a plug and play CAN Bus display kit to suit Gen 1 Subaru BRZ and Toyota 86 and accesses all data from the original ECU. The sensors are queried directly via CAN Bus and are displayed on our proven MFD28 touch screen display . The Subaru BRZ/Toyota 86 display comes with a vehicle-specific cover and fits into the interior like an original part. The ventilation remains functional and air passes through the slots around the display. The sensors are queried via OBD2 and directly from the Can Bus. We have optimized the protocol to achieve maximum query speed.

The CANchecked MFD28 is a 2.8" touch screen display which allows you to monitor a huge amount of information from your car's computer. The MFD28 is a CANbus compatible device which is able to read information from most 2008-onwards vehicles by simply plugging into your vehicles OBDII port. CANbus is currently how newer vehicles send and receive data. Think of it as a USB port on a computer; whatever is plugged into a USB port can be opened and accessed from your computer. If your CANbus ECU has sensors plugged in, then in most cases plugging a CANchecked display will read it* (*see below for more information). Don't have a CANbus ECU in your car? No problem! The MFD28 can accept 4 additional analogue inputs including Flex Fuel sensors directly to the gauge. No ECA module required.

The MFD28 however is more than just a gauge. It is also a data logging tool, a CAN sensor hub, a CAN control switch, a shift light and a warning light! Read below for a full list of features. The MFD28 is a compact device and can used in both landscape and portrait orientations which you can then design in the DSS display setup software on your PC or Laptop. The MFD28 can be configured easily to display certain ECU values with a range of pre-made screen designs.

The CANchecked MFD28 is one of the best ways to monitor and enjoy your vehicle.

Vehicle Specific Information:

As standard, we supply your display with a ready-made TRI file. All sensors that are queried are defined here.

Temperatures:

• Engine water temperature, oil temperature, intake temperature, gasoline temperature,

Pressures:

• Boost pressure, ambient pressure, fuel pressure

Lambda/mixture

• Lambda value, short-term lambda adjustment, long-term lambda adjustment, MAF, engine load

Driver dynamics:

• rBrake pressure, steering angle, vehicle speed, throttle valve angle

Miscellaneous

• Speed, tank level, 4x wheel speed, vehicle speed, total ignition angle, gear

If values ??are missing, they can be added easily.

ATTENTION: not every engine offers all values!


Optional Shift Light

The shift light module can be easily pinned to both the MFD28 and MFD32 touch screen displays. Thanks to the simple and individual configuration, it can be individually adapted to your personal wishes and the engine. All colors and respective speeds of the LEDs are completely adjustable. The shift light is already known from motorsport! For example, in Formula 1 it is integrated directly into the steering wheel. Different colored LEDs show the current speed and flash to signal the optimal switching time.

CANchecked took up this concept and designed its own shift light module. The connection is made via an approx. 50cm long cable to the display at the provided three-pin interface.
