AEM 340LPH Petrol Fuel Pump Kit for Subaru WRX/STI 94-07
AEM ELECTRONIC
Description
Item: AEM 340LPH Petrol Fuel Pump Kit for Subaru WRX/STI 94-07
AEM's 340LPH High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.
The AEM 340LPH High Flow In-Tank Fuel Pump (PN 50-1000) flows 340 lph (84 gph) at 40 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Please see the flow curves and current draw vs. fuel pressure graphs on the specs tab for more information.
This fuel pump is designed for in-tank mounting for use with gasoline and features a compact 39mm diameter that fits most applications. It has an offset inlet design that eases installations and includes a wiring harness, pre filter, internal fuel hose and clamps, end cap and rubber buffer sleeve. Every pump is tested to flow 340 lph at 40 PSI before it is packaged for sale.
Features:
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design
- Tested to flow 340 lph @ 40 PSI
- 39mm diameter fits most applications
- Offset inlet design eases installation
- Each pump individually tested
- For unleaded petrol vehicles only. Not guaranteed for E85 use. See AEM 50-1200 for E85 compatible pump.

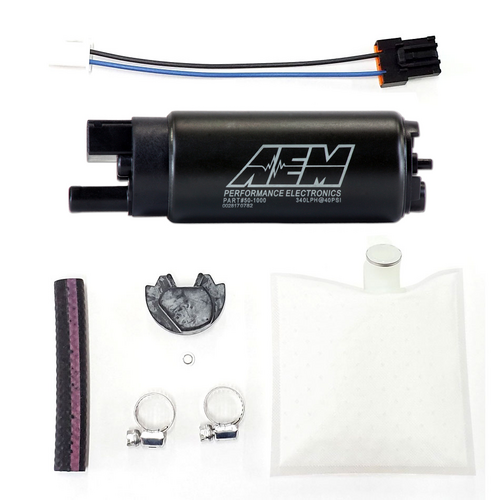

- Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead
Important Notes:
- Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pumps. Please refer to the Electrical Requirements section in the instructions document for proper wiring. We recommend purchasing the fuel pump hard wiring kit (information below).
- It is imperative to ensure that the polarity of the electrical plug in your tank is correct for you pump if you choose to use it. If it is not correct you can either re-pin it or use the supplied plug.
- AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made.
What's Included:
- 1 x AEM 50-1000 Fuel Pump Kit
- 1 x Vehicle Specific Installation Fitting Kit
Hard Wire Kit Option:
Get the most out of your new high flow fuel pump by ensuring it gets the voltage it needs. Old, compromised OE wiring can limit the voltage your fuel pump receives. A hardwire kit includes everything you need to safely, easily, and reliably wire your pump directly to your battery, ensuring no matter how hard you push your pump, your wiring will be up to the task. We especially recommend this kit for use in cars over 10 years old, cars making over 400whp, and cars which were originally not designed for high horsepower.
Select an AEM hard wire kit when adding to cart.
Specifications
TECHNICAL SPECS:
- Weight: 12.5oz (354grams)
- Outside Diameter: 39mm OD
- External Materials: Black plated steel with laser etching
- Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
- Outlet Fitting: 8 mm hose clamp. Offset
- PRV Activation: 80 PSI
- Impeller Design: Single Scroll Ceramic Turbine
VOLTAGE SPECS:
- Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
- Fuse: 20 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
Vehicle Fitment
1994 Subaru Impreza GC8/GF8 (Non-Turbo) |
1994 Subaru STI GC8 |
1994 Subaru WRX GC8/GF8 |
1995 Subaru Impreza GC8/GF8 (Non-Turbo) |
1995 Subaru STI GC8 |
1995 Subaru WRX GC8/GF8 |
1996 Subaru Impreza GC8/GF8 (Non-Turbo) |
1996 Subaru STI GC8 |
1996 Subaru WRX GC8/GF8 |
1997 Subaru Impreza GC8/GF8 (Non-Turbo) |
1997 Subaru STI GC8 |
1997 Subaru WRX GC8/GF8 |
1998 Subaru Impreza GC8/GF8 (Non-Turbo) |
1998 Subaru STI GC8 |
1998 Subaru WRX GC8/GF8 |
1999 Subaru Impreza GC8/GF8 (Non-Turbo) |
1999 Subaru STI GC8 |
1999 Subaru WRX GC8/GF8 |
2000 Subaru Impreza GC8/GF8 (Non-Turbo) |
2000 Subaru STI GC8 |
2000 Subaru WRX GC8/GF8 |
2001 Subaru Impreza GD/GG (Non-Turbo) |
2001 Subaru STI GDB |
2001 Subaru WRX GDA/GGA |
2002 Subaru Impreza GD/GG (Non-Turbo) |
2002 Subaru STI GDB |
2002 Subaru WRX GDA/GGA |
2003 Subaru Impreza GD/GG (Non-Turbo) |
2003 Subaru STI GDB |
2003 Subaru WRX GDA/GGA |
2004 Subaru Impreza GD/GG (Non-Turbo) |
2004 Subaru STI GDB |
2004 Subaru WRX GDA/GGA |
2005 Subaru Impreza GD/GG (Non-Turbo) |
2005 Subaru STI GDB |
2005 Subaru WRX GDA/GGA |
2006 Subaru Impreza GD/GG (Non-Turbo) |
2006 Subaru STI GDB |
2006 Subaru WRX GDA/GGA |
2007 Subaru Impreza GD/GG (Non-Turbo) |
2007 Subaru STI GDB |
2007 Subaru WRX GDA/GGA |
Specifications
SKU | AEM-e-50-1000-400-791 |
Brand | AEM (ELECTRONIC) |
Shipping Weight | 4.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
