SKU: acl-5M1644HX-STD
ACL Race Series Main Bearings for VW 1595-1781-1984cc Size: STD5M1644HX-STD
5M1644HX-STD
Description
Item: ACL Race Series Main Bearings for VW 1595-1781-1984cc Size: STD5M1644HX-STD
Quick Info
- Size: STD
- Direct Fit
- Great for engine rebuild
Product Details
ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Incresed crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
- Size: STD

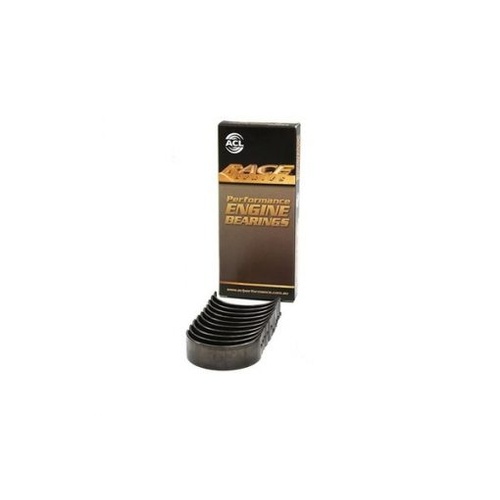

Note: Pictures may not be actual product.
HX Series Bearings are .0005″ thinner per half to give .001″ extra clearance for standard sized cranks.
Specifications
SKU | acl-5M1644HX-STD |
Brand | ACL |
Shipping Weight | 5.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
