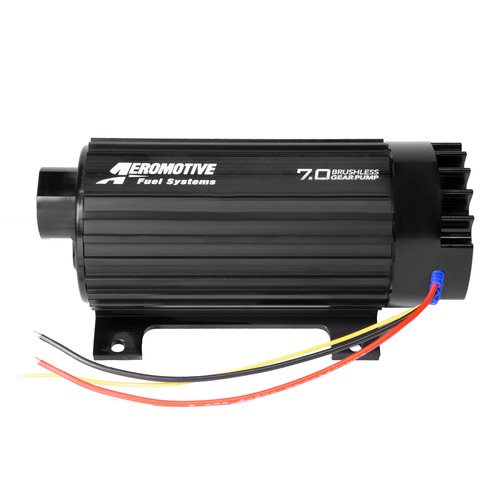

AEROMOTIVE fuel pump 11197

Australia wide rate - $55.00

Description

Additional information

Weight	5.15 lbs
Dimensions	9.5 x— 5.5 x— 4.5 in

Mounting Configuration: External

CARB or EFI	Power Adder	FUEL	Horsepower
EFI	Naturally Aspirated	Gas	4800
EFI	Naturally Aspirated	E85	3360
EFI	Forced Induction	Gas	3400
EFI	Forced Induction	E85	2380
CARB	Naturally Aspirated	Gas	5400
CARB	Forced Induction	Gas	3800
CARB	Naturally Aspirated	E85	3780
CARB	Forced Induction	E85	2400

P/N 11197: 7.0 GPM Brushless Fuel Pump w/ True Variable Speed controller
Ground Shaking Performance - Advanced Technology

Fuel Injected Engines:
- up to 4,800 FWHP on GAS - naturally aspirated
- up to 3,400 FWHP on GAS - forced air induction

- up to 3,360 FWHP on E85 - naturally aspirated
- up to 2,380 FWHP on E85 - forced air induction

Carbureted Engines:
- up to 5,400 FWHP on GAS - naturally aspirated
- up to 3,800 FWHP on GAS - forced air induction

- up to 3,780 FWHP on E85 - naturally aspirated
- up to 2,400 FWHP on E85 - forced air induction

E85 Compatible, reduce max FWHP by 30%
Lighter than the traditional external mount pumps.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
New integral spur-gear pumping mechanism.
90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
ORB-12 inlet and ORB-10 outlet ports.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.
