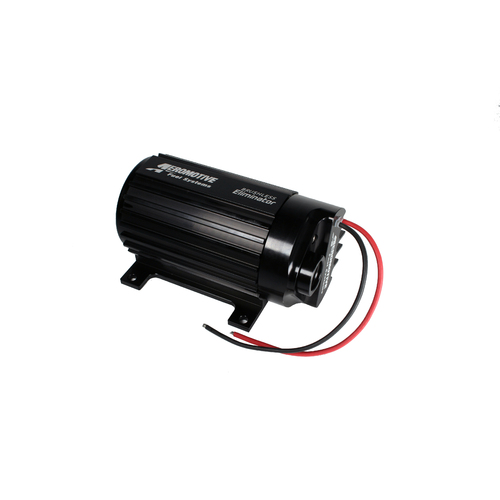

Brushless In-Line Eliminator Fuel Pump with Variable Speed Controller(11194)

Description

Image is not an accurate representation of this product.

Aeromotives True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Additional information

Mounting Configuration: External

P/N 11194: Brushless In-Line Eliminator Fuel Pump w/ Variable Speed Controller

• The Eliminator performance you expect and more:
  • Fuel Injected Engines:
    up to 1900 FWHP - naturally aspirated
    up to 1400 FWHP - forced air induction
  • Carbureted Engines:
    up to 2300 FWHP - naturally aspirated
    up to 1700 FWHP - forced air induction
• E85 Compatible, reduce max FWHP by 30%
• Lighter than the traditional Eliminator pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• Quieter than the traditional Eliminator pump.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• ORB-12 inlet and ORB-10 outlet ports.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.

Aeromotives True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts

Also Available as a Drop-In Stealth Module and in Complete Stealth Fuel Cells.
