2 1/16",GAUGE,OIL PRESS,120PSI,STEPPER MOTOR W/WARN,EXTREME ENVIRONMENT # 9253
2 1/16",GAUGE,OIL PRESS,120PSI,STEPPER MOTOR W/WARN,EXTREME ENVIRONMENT # 9253
SKU: autometer-9253

2 1/16",GAUGE,OIL PRESS,120PSI,STEPPER MOTOR W/WARN,EXTREME ENVIRONMENT # 9253

Part Number: # 9253

$421.59

or 4 payments of $105.40 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: 2 1/16",GAUGE,OIL PRESS,120PSI,STEPPER MOTOR W/WARN,EXTREME ENVIRONMENT # 9253

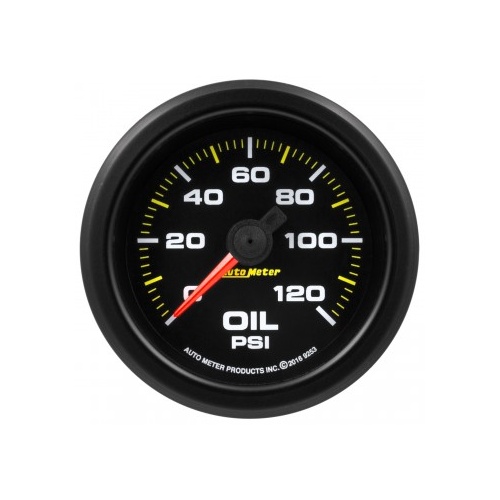

Designed for the absolute harshest environments, the AutoMeter Extreme Environment series gauges provide the very best in waterproof sealing. Seeing the exact oil pressure on your vehicle can mean the difference between extracting the most performance safely and expensive failures. The life blood of your engine, a lack of oil pressure is one of the most catastrophic scenarios that can happen. Knowing the precise pressure is critical to both its longevity and performance, as well as your peace of mind. AutoMeter’s Digital Stepper Motor Oil Pressure Gauge utilizes the most advanced technology on the market to deliver accuracy and durability you won’t find anywhere else. Our advanced 1/8” NPT solid state pressure transducer (included) provides the best possible measurements with unparalleled resistance to vibration and heat. Preconfigured warning points change the gauge's LED illumination from white to red, allowing you to concentrate on the work at hand or taking the checkered flag.

Feature Points

  • Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits
  • 6 pin DTM connector at gauge makes for a sealed connection
  • Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8” gauges, 60% lighter than Ultra-Lite 2-5/8” Mechanical, 25% lighter than Spek, 10% less than Elite
  • White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
  • External momentary switch for control of brightness
  • Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range
  • Preset backlight color change warning - 10 PSI

SKU autometer-9253
Brand AUTOMETER
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
