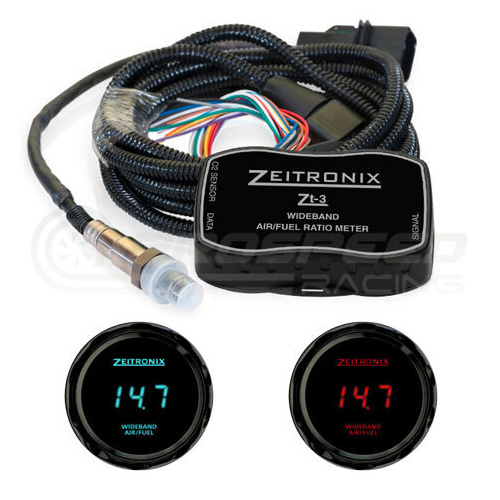

Zeitronix ZT-3 Wideband AFR Air/Fuel Meter w/ ZR-3 Gauge

item: Zeitronix ZT-3 Wideband AFR Air/Fuel Meter w/ ZR-3 Gauge

The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines.

The new Zt-3 has the same high quality, high precision air fuel ratio readings as our signature Zt-2 wideband. The Zt-3 supports wideband air fuel ratio and lambda readings, adjustable simulated narrowband output and a new configurable linear wideband output for ease of use with engine management systems and 3rd party gauges.

The new Zt-3's dimensions are only 3 by 2 by 1 inches.  The case includes slots case for easy zip tie mounting in a tucked away location.

Zt-3 System

No matter if you have a stand alone engine management system, a piggy back fuel control or a carbureted engine. The Zt-3 Wideband Air Fuel Ratio Meter is a must for serious tuners!  Finally you can tune for more power, closer to the edge, precisely monitoring Air/Fuel ratio and datalogging up to 9 hours of data with a blazing rate of 65 samples per second per graph. The Zeitronix Data Logger Software can be utilized as a real time display when using a standard Zt-3 kit with or without the ZR-1 or DashDAQ displays.

On Board Diagnostics (OBDII) is not required but may be monitored through use of the DashDAQ II XL display which reads and clears engine error codes, log Zt-3 Wideband System and OBDII data and has many additional performance features.

Installation

Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR!  A simple LED indicator displays off, warm-up and running modes.

Additional information is available for setting up the configurable linear wideband output with your particular engine management system.

ZT-3 Features:

• 0.1 AFR accuracy
• Operating voltage 10V to 18V
• Switching power supply for oxygen sensor heater
• Precise sensor temperature control
• Reverse polarity protection
• Integrated self resettable fuse
• Positive lock connectors
• Protected inputs and outputs
• Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
• Kits available with or without the wideband oxygen sensor included
• Easy to install plug and play kit
• Configurable Wideband Analog Output
• Narrowband Output

Inputs/Outputs:

• Bosch Wideband O2 sensor Input
• Simulated Narrowband Output
•
