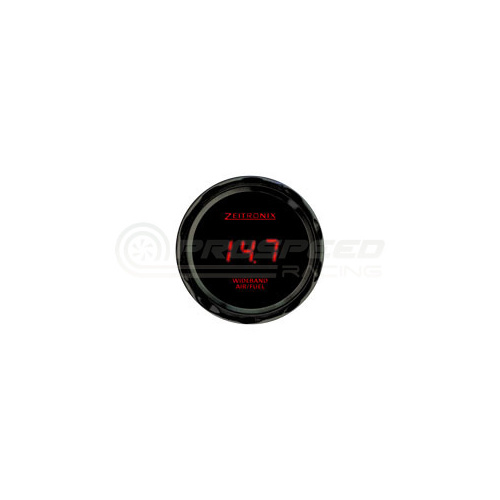

item: Zeitronix ZR-3 AFR Air Fuel Ratio Gauge Only Red

The ZR-3 AFR Gauge works with all Zt-2 and Zt-3 Wideband Systems. The ZR-3 Gauge plugs into the Zt-3/Zt-2 DATA port. Power and serial data is supplied directly through the single connection - there are no additional +12V or ground  wires. The ZR-3 cable length is 5 ft (1.5m).

Mounting Options:

The ZR-3 AFR gauge is only 6/8" (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can be surface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape. The ZR-2 base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod. For additional mounting options the package includes 2 set screws and 2 nuts (4-40 screw size). See the Zeitronix gallery for various gauge installation pictures.

Features:

• Red,  Blue and White digital AFR readout with large 0.4" (10mm) digits
• Stylish, machined, brushed aluminum or black anodized bezel and slim enclosure
• Blue and Red Digits come with black anodized aluminum bezel. White Digits come with natural aluminum bezel.
• Slim 0.75" (19mm) design for flexible 52mm pod or surface mounting options
• High contrast display visible even in direct sunlight
