Zeitronix Plug and Play ECA 2 Ethanol Content Analyzer Kit w/Sensor, No Gauge

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

item: Zeitronix Plug and Play ECA 2 Ethanol Content Analyzer Kit w/Sensor, No Gauge - Subaru BRZ/Toyota 86

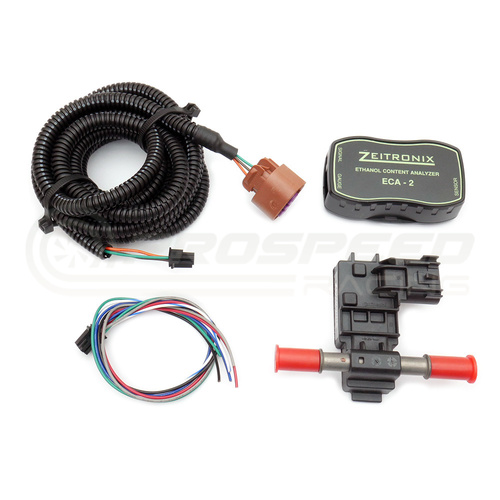

We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector with Plug and Play harness suit Subaru BRZ/Toyota 86

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

Features:

Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included. Harness length is 8 ft (2.4m)
A flex fuel sensor is required. The ECA-2 is compatible with some OEM sensors used in GM vehicles with the flex fuel insignia or which run on E85. However GM offers a large number of different sensors with different specs.
ECA-2 Kit which includes Zeitronix tested Flex Fuel Sensor
ECA-2 dimensions: 3" x 2" x 1" (76mm x 50mm x 25mm)
Made in the USA!

What are the sizes of the flex fuel sensor inflow and outflow lines?
Zeitronix Flow Through Flex Fuel Sensor both tubes are 0.37" and 0.5" at the flange.

The usual mounting location for the sensor is the return fuel line. Make sure the sensor is filled completely with fuel.
A professional installation by a shop familiar with your vehicle and it's fuel system is required. Always check for fuel leaks!

ECA-2 Analog Outputs
Ethanol content and temperature analog outputs are available as part of the ECA-2. The flex fuel sensor does not provide these outputs. We have created the ECA-2 to provide these outputs making use of E-85 easier with after market engine control modules and data logging systems.
