Wagner Tuning Comp. Intercooler Kit for Honda Civic Type R FK8

New release 4. quarter 2018

COMPETITION INTERCOOLER KIT HONDA CIVIC TYPE R FK8

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 670 mm x 183,4 mm x 125 mm (15.4 liters)/ 26,38Inch x 7,22Inch x 4,92Inch (939,76Inch³), which was developed especially for the requirements of the Honda Civic Type R FK8. This high-performance core offers an 23 % larger frontal surface and 140 % more core volume compared to the stock intercooler.

The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Inlet diameter: Ø65 mm/2,56Inch ; Outlet diameter Ø70 mm/2,75Inch

Dimensions stock intercooler:
V = 6,4 L / 239,55Inch³
A = 6403200 mm²/ 9 925 Inch²

Dimensions WAGNERTUNING intercooler:
V = 15,4 L / 939,76Inch³
A = 15359750 mm²/ 23 808 Inch²

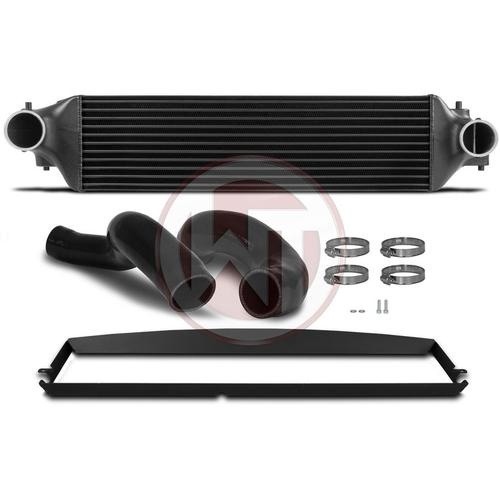

kit comes with:
1 intercooler
1 air baffle
2 silicone hoses (black)
1 mounting material
1 installation instruction
