V2 RB26 6 throttle drive by wire system

Product Details

In 2018 we designed the first commercially available drive by wire system for the OEM RB26 6 throttle body inlet.
After 4 years and a combined 100,000km of road and race use we decided that it was time to update the system.

The V2 system now uses a Bosch based billet aluminium throttle actuator that has built in throttle position sensors.
There is no need for any extra sensors, brackets, wires or connectors, everything functions just like a Bosch single throttle body would.


TPS tracking is perfect and max current draw is under 4 Amps, which means there is no need for any external control boxes or half bridge modules. It will work on any ECU that can run a Bosch drive by wire throttle body.

The system works with any 6 throttle inlet manifold (OEM, Nismo, Plazmaman, Hypertune or even N/A with velocity stacks) without the need for any extra parts.
It also fits with the OEM oil cooler/filter block assembly.

We build cars first and foremost not just parts so we know what works and what doesn't in the real world.
Buy from the innovators not the imitators.

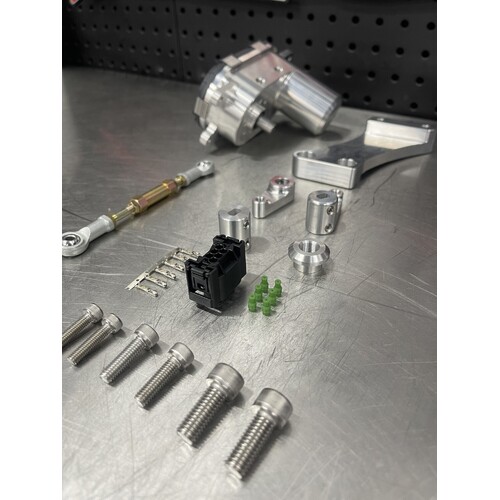

Parts Included

• 1 x Bosch based billet aluminium drive by wire actuator
• 1 x New Genuine Nissan throttle linkage
• 1 x Throttle shaft joiner
• 1 x Throttle shaft joiner with integrated linkage arm
• 1 x Throttle actuator arm
• 1 x Throttle actuator plug and pin kit
• 1 x Throttle actuator bracket
• 2 x weld in bungs ( 1/8 npt and 1/4 npt)
• Stainless fasteners
