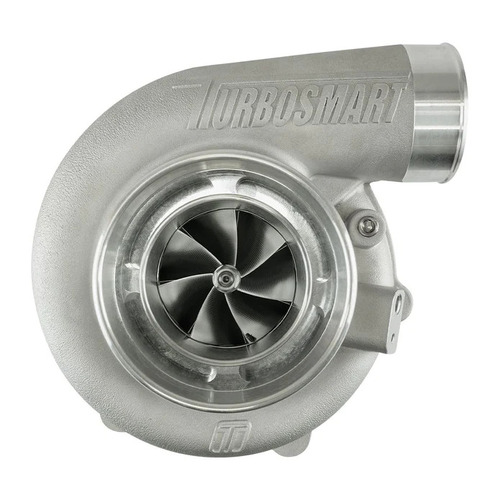

Turbosmart Oil Cooled 5862 T3 Flange Inlet V-Band Outlet A/R 0.63 External Wastegate

Calculate Shipping

Australia wide rate - $45.00

Description

item: Turbosmart Oil Cooled 5862 T3 Flange Inlet V-Band Outlet A/R 0.63 External Wastegate

Description

Proprietary dual ceramic ball bearing system, oversized shaft hub with drastically improved oil sling, dual gas rings for improved gas sealing, optimised compressor backplate and compressor wheel integration for improved air management, tapered compressor wheels for increased strength, one piece integrated backplates for improved chassis rigidity. Turbosmart compressor housings are designed with velocity in mind to improve cylinder filling. Turbine housings are designed to compliemt Turbosmart's unique low pressure turbine wheel aerodynamics and reduce exhaust back pressure. 2618-T6 forged and CNC milled compressor wheels designed with aggressive aerodynamics leverage the ultra responsive bearing and shaft combination for increased airflow at all shaft speeds. Lightweight, aluminium compressor covers feature CFD drive and optimised A/R designs with anti-surge inlets, built-in speed and boost reference ports.

Specifications

Lightweight Rotating Assembly for Fastest Spool
Aggressive Aerodynamics for Increased Air Velocity
Built in Speed and Pressure Reference Ports
Smaller and Lighter Than the Competition
Proprietary Dual Ceramic Ball Bearing System
Oversized Shaft Hub for Improved Oil Sling
310s Hi Temp Stainless Steel Investment Cast Turbine Housing
T14 Inconnel Turbine Wheel
2618-T6 Forged and CNC Milled Compressor Wheel

Horsepower Rating	Compressor Wheel Exducer	Turbine Wheel Exducer	Turbine Housing A/R	Comp Cover Inlet	Comp Cover Discharge	Turbine Housing Inlet	Turbine Housing Discharge
750	58mm	62mm	0.63	4"	2.5"	T3	3.00" V-Band
