SKU: G844669-0006
Turbine Housing Kit GTW36 Series T04 D/E 1.00a/r
Part Number: G844669-0006
Description
Please purchase the item according to the manufacture part number

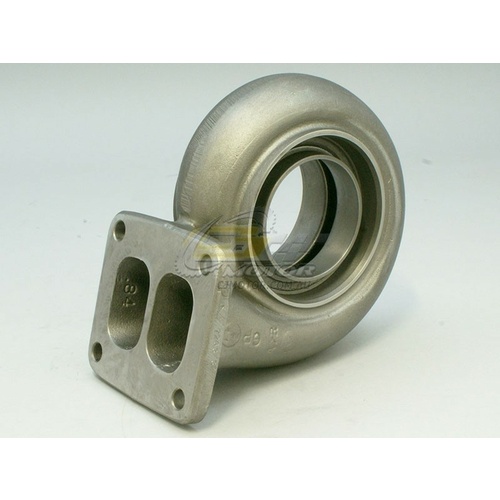

Garrett Turbine Housing to suit the GTW36 Series
- 1.00a/r
- Inlet Flange: T04 Dual Entry
- Material: Cast Iron
- Wastegate: External
- Outlet Flange: 3.0" V-Band
- Suitable for: Garrett GTW3684, GTW3684R
Product Notes:
In standard form, these turbine housings do not come with a V-Band Flange connection for the turbine outlet (Image 1). To make fitment universal throughout the T04Z/GTW36/GTW38 range, we press fit, and weld a sleeve into the back of the turbine housing, to allow for a standard Garrett 3" V-Band assembly for the dump pipe (Image 3). The Turbine Housing price includes the sleeve, the pressing and welding of the sleeve, and the housing itself. The opposing dump pipe flange and clamp are sold separately.
Kit Contains:
- Turbine Inlet Gasket
Specifications
SKU | G844669-0006 |
Brand | Garrett |
Shipping Weight | 15.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
