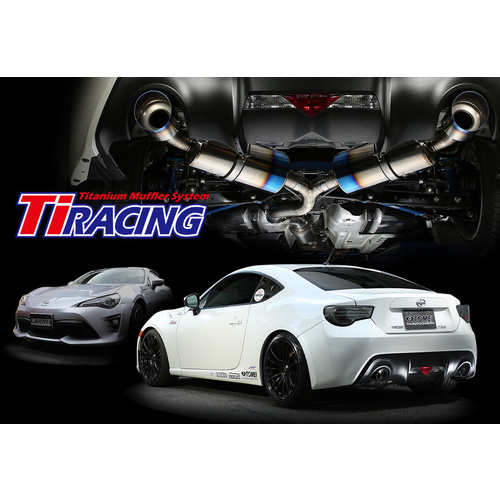

TOMEI Ti RACING TWIN TITANIUM MUFFLER CATBACK SYSTEM for 86/BRZ/FR-S

Calculate Shipping

Australia wide rate - $40.00

Description

Ti RACING TITANIUM MUFFLER for 86/BRZ/FR-S

EXHAUST SYSTEM

Dual titanium exhaust! High performance, light weight with tuned sound.

This all new Ti RACING 86/BRZ/FR-S exhaust system has been designed to improve the performance at all RPM range from low to mid, and then smoothly shift to high RPM range reducing the well-known the mid range hesitation.
Sub muffler in the main pipe, then split into 2 after axle and 2 mufflers in both side.
This structure helps reducing the sound while maximizing the performance.
Front spherical flange fits the stock front pipe and any other aftermarket front pipe with the spherical style flange.

PRODUCT INFO

APPLICATION	P/N		NOTES
86 BRZ FRS	441001		※FOR OFF ROAD USE ONLY.

FEATURE / SPEC


ORIGINAL TITANIUM MATERIAL To ensure and maintain reasonable price, supreme quality and stable supply, this product is made from TOMEI original titanium material which is refined from raw material and made into performance parts all under quality controlled environment.	END TIPS Blue burnt titanium color and laser marked TOMEI logo on the end tips.These together give it the great appearance and prove the best quality.	PRECISION WELDS Titanium is known as a difficult material to weld.Its strength, long-life and beautiful appearance all prove the true quality.

MAIN MUFFLERS Large muffler shells eliminates problem of sound issues at the tracks without reducing performance.Stamped TOMEI logo and gradation titanium color on the mirror finished mufflers.	HIGH QUALITY GLASS WOOL Filled with even more glass wool comparing to existing EXPREME Ti series to reduce and tune the sound.High quality long filament glass wool is very durable and prevents aging deteriorations caused by continues high heat and high pressure.	MAIN PIPE Same free flow design as the existing models with all new pipe layout to ensure enough ground clearance.

KIT CONTENTS

MAIN PIPE A (1)
MAIN PIPE B (1)
MAIN PIPE C (1)
MAIN SILENCER LH (1)
MAIN SILENCER RH (1)
END TIP (2)
SILENCER BAND LH (1)
SILENCER BAND RH (1)
SPRING (7)
CLAMP BAND (2)
FLANGE NUT A M8 (2)
FLANGE BOLT M8 L=22 (2)
FLANGE NUT B M8 (2)
FLANGE BOLT M8 L=55(2)
BAND RUBBER (2)
BUTTON BOLT (4)
BOLT SMOOTH PASTE(1)
ALLEN KEY (1)

STOCK COMPARISION

The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.

▲S15純正

(R)PS13

S14

S15

TOMEI

STD

TOMEI

STD

TOMEI

STD

MATERIAL

TITANIUM

STEEL

TITANIUM

STEEL

TITANIUM

STEEL

MAIN PIPE DIAMETER

Φ80.0

Φ54.0

Φ80.0

Φ80

Φ47-Φ63mm

MAIN PIPE THICKNESS

1mm

1.5ｍｍ

1mm

1.5ｍｍ

SILENCER DIAMETER

Φ152

SILENCER BROAD THICKNESS

1mm

TIP DIAMETER

Φ115

Φ38.1×2

Φ115

Φ48.6×2

TIP BROAD THICKNESS

1mm

FLANGE THICKNESS

8.0mm

WEIGHT

4.65kg

14.50kg

4.85kg

16.00kg

4.85kg

16.00kg

9.85kg LIGHTER

11.15kg LIGHTER

3 PIECE ASSEMBLY

No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.

GLASS WOOL

The long fiber wool threads were adopted for the silencer. This type has proven to last longer than the traditional fiberglass materials even over a longer period of time with extensive high temperature exposure both at high and low pressures.

RACING LAYOUT

For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.

EXPREME Ti TESTAMENT

The sign of quality and performance is clearly visible with the laser marked "EXPREME Ti" logo on the side of the muffler tip.

PERFORMANCE VALUE

The best performance is made possible with the best materials and still with keeping it within everyone's reach.

DRY RACE SOUND

The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.

KIT CONTENTS

MAIN PIPE A （1）

MAIN PIPE B （1）

SILENCER ASSY （1）

FLANGE NUT M10 (P=1.25mm) （2）

GASKET （1）

CLAMP BAND （2）

SPRING （4）

SILENCER BAND （1）

SILENCER BAND RUBBER （1）

FLANGE BOLT M8 (L=25mm) （1）

FLANGE NUT M8 （1）

6 POINT WRENCH （1）

SOUND REDUCER （1）

EXPREME Ti STICKERS （2）

TOMEI STICKERS （2）

TOMEI ステッカー（2）

BOLT SMOOTH PASTE （1）

TOMEI EMBLEM （1）

Specifications

SKU	TM-441001
Brand	TI RACING
Shipping Weight	20.0000kg
Shipping Width	0.800m
Shipping Height	0.400m
Shipping Length	0.200m
Shipping Cubic	0.064000000m3
