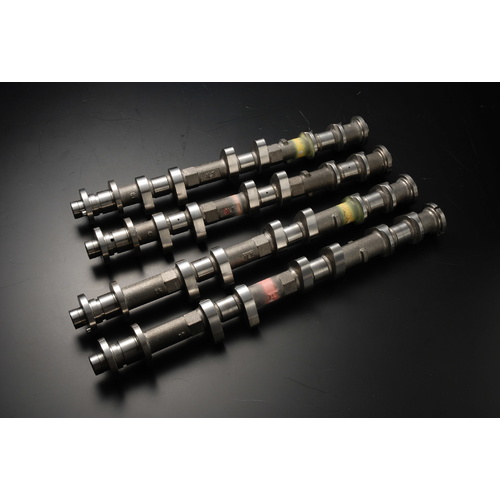

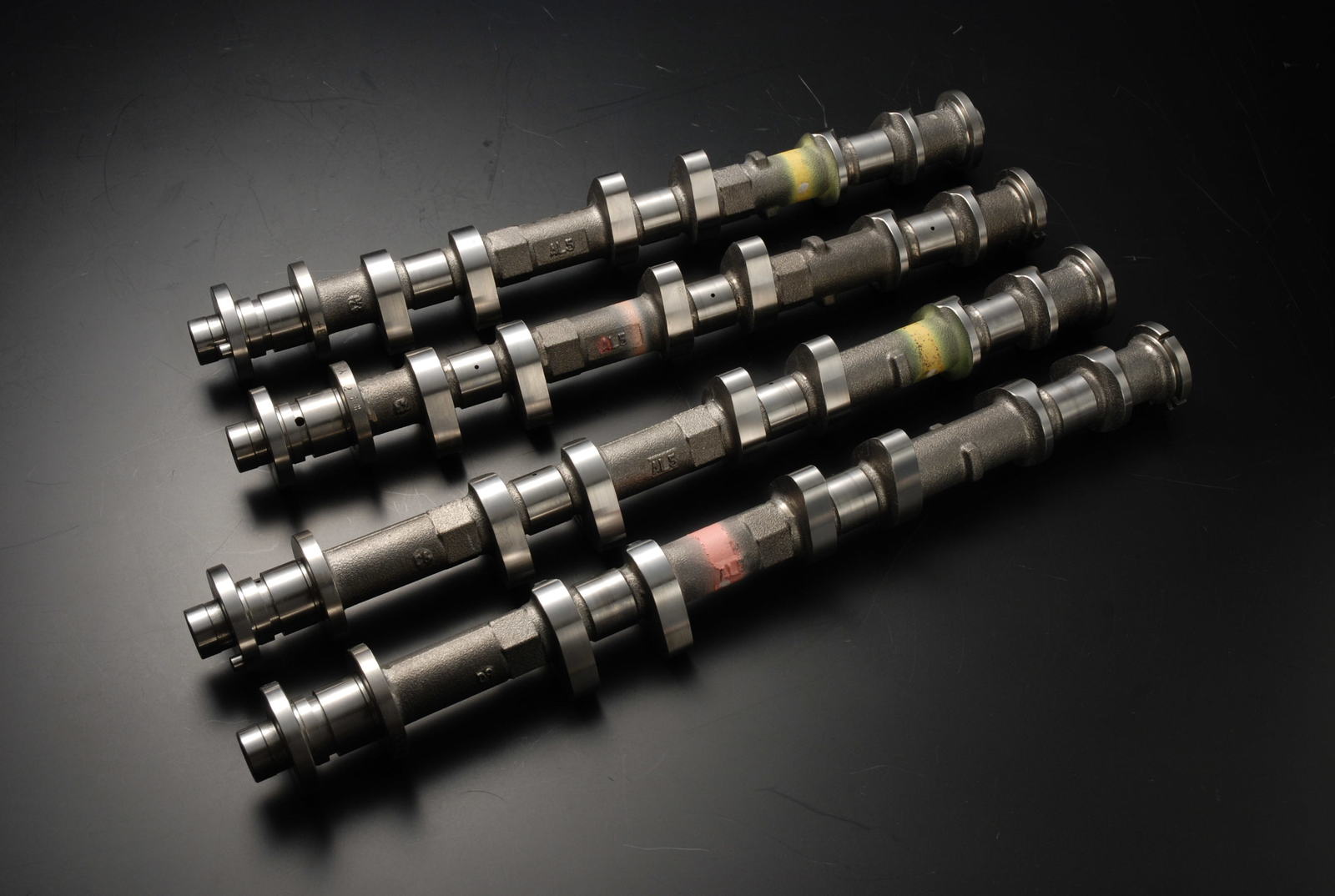

TOMEI PONCAM FOR NISSAN VQ35DE/HR

Buying Options

Quantity	Image	Name	Price
		143063 -TOMEI PONCAM FOR NISSAN VQ35DE previous term (-05.09)	AUD$1,585.07 In stock
		143064 TOMEI PONCAM FOR NISSAN VQ35DE late stage (-07.01)	AUD$1,585.07 In stock
		143065-TOMEI PONCAM FOR NISSAN VQ35HR	AUD$1,585.07 In stock

Add Selected to Cart

NISSAN VQ 35 DE / HR

Spec.

engine	Model	Duration of operation (degree)	Maximum cam lift (mm)	IN / EX	Maximum valve lift (mm)	Cold valve clearance (mm) [± 0.01]	Baltai initial set value central angle (degrees)	Base circle	Part number
VQ35DE previous term (-05.09)	Z33 MT car / AT car	256	10.20	IN	9.90	0.30	125	Ø 35.40	143063
VQ35DE previous term (-05.09)	V35 4Dr / 2Dr MT car	256	10.20	EX	9.87	0.33	112		143063
VQ35DE late stage (-07.01)	Z33 MT car	264	10.80	IN	10.50	0.30	125		143064
VQ35DE late stage (-07.01)	Z33 MT car			EX	10.47	0.33	126		143064
VQ35HR	Z33 MT car			IN	10.50	0.30	122		143065
VQ35HR	Z33 MT car			EX	10.47	0.33	124		143065

　be careful

When using a camshaft with a cam lift amount of 11.0 mm or more, it is necessary to replace the valve spring.

When using a camshaft with a cam lift amount of 11.0 (for IN) or more, the piston and valve may interfere with each other due to the specifications of the engine to which the camshaft is attached and the advance angle of the eVTC. Please confirm the interference of the piston and the valve by actual measurement, and perform recess processing etc. according to the necessity when installing.
Example: For mounting with STD head · STD piston · STD advance angle amount of eVTC, recess processing of about 1 mm or more is required.
※ We accept the recess processing at a charge at our company. Please inquire in detail.

SKU	143063-64-65
Brand	TOMEI poncam
Shipping Weight	12.0000kg
Shipping Width	0.180m
Shipping Height	0.170m
Shipping Length	0.520m
Shipping Cubic	0.015912000m3
