SKU: 143036-37-05-18

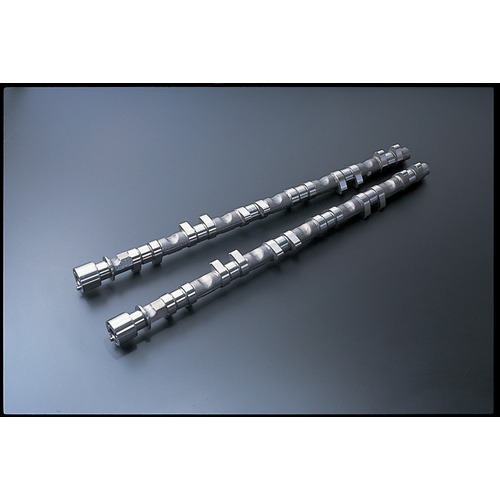

TOMEI PONCAM FOR NISSAN SKYLINE RB26DETT


Buying Options

Quantity Image Name Price
143005-TOMEI PONCAM TYPE B FOR NISSAN SKYLINE RB26DETT BNR32 BNCR33 143005-TOMEI PONCAM TYPE B FOR NISSAN SKYLINE RB26DETT BNR32 BNCR33
$1,109.21
In stock
143018-TOMEI PONCAM TYPE B FOR NISSAN SKYLINE RB26DETT BNR34 GTR 143018-TOMEI PONCAM TYPE B FOR NISSAN SKYLINE RB26DETT BNR34 GTR
$1,109.21
In stock
143036 - TOMEI PONCAM TYPE A FOR NISSAN SKYLINE RB26DETT BNR32/BNCR33 GTR 143036 - TOMEI PONCAM TYPE A FOR NISSAN SKYLINE RB26DETT BNR32/BNCR33 GTR
$1,109.21
In stock
143037-TOMEI PONCAM TYPE A FOR NISSAN SKYLINE RB26DETT BNR34 GTR 143037-TOMEI PONCAM TYPE A FOR NISSAN SKYLINE RB26DETT BNR34 GTR
$1,109.21
In stock

Description

-


NISSAN RB 26 DETT

(It is sold in IN, EX set)

type
Application
Duty angle (IN)
Dog angle (EX)
Lift amount (IN)
Lift amount (EX)
Part number

A
BNR 32, BCNR 33
260 °
252 °
9.15
9.15
143036

BNR 34
143037
B
BNR 32, BCNR 33
260 °
260 °
9.15
9.15
143005
BNR 34
143018
·
Setting the operating angle of A type exhaust lower, we measured the stability of idling and the improvement of response at low and medium speed.
For normal turbines ~ N1 turbine class, it is optimum.
· By making
the operating angle of the EX cam larger than that of the B type A type, it was possible to achieve both improvement of response and improvement of peak engine power even when a medium to large turbine is used.


PONCAM specification table
TYPE
IN working angle
EX working angle
IN lift amount
EX lift amount
IN Baltai
EX Baltai
IN
V - Clearance
EX
V - Clearance
A
260 °
252 °
9.15 mm
9.15 mm
110 °
115 °
0.45 mm
0.38 mm
B
260 °
260 °
9.15 mm
9.15 mm
110 °
115 °
0.45 mm
0.38 mm

Recommended specification

TYPE A
TYPE B
Catalyst
Sports catalyzer - straight
Sports catalyzer - straight
TURBO
Genuine ~ Pon attach large capacity
N1 ~ Full Turbine Kit

* When using this product, the cam mountain and the cylinder head may interfere due to the individual difference of the pure cylinder head.
  Please check the clearance thoroughly when assembling and perform escape processing as necessary.

Specifications

SKU 143036-37-05-18
Brand TOMEI
Shipping Weight 10.0000kg
Shipping Width 0.690m
Shipping Height 0.170m
Shipping Length 0.080m
Shipping Cubic 0.009384000m3
