TOMEI EXPREME TURBINE OUTLET PIPE 1JZ-GTE JZX100/JZX110/JZX110W/JZZ30Late Model/JZS171/JZS171W
TOMEI EXPREME TURBINE OUTLET PIPE 1JZ-GTE JZX100/JZX110/JZX110W/JZZ30Late Model/JZS171/JZS171W
SKU: 424001

TOMEI EXPREME TURBINE OUTLET PIPE 1JZ-GTE JZX100/JZX110/JZX110W/JZZ30Late Model/JZS171/JZS171W

$695.00

or 4 payments of $173.75 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)

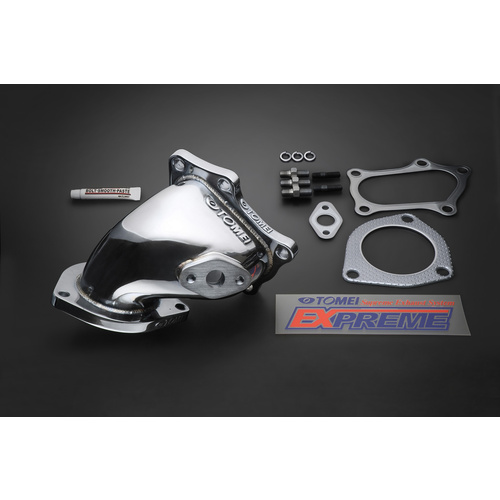

TURBINE OUTLET PIPE for 1JZ-GTE



Large Capacity For High Flow,
Maximise Your 1JZ Potential!

The internal shape is made smooth to optimize the large volumetric gas flow. With a well designed flange for ease of installation. This products design will maximize the Tomei ARMS Turbos performance potential. It was designed with the exit diameter of Φ76.3mm, yet with the same flange bolt pattern of the stock front pipe.

  MATERIAL EXIT
DIA.(Φ)
VOLUME
(cc)
FLANGE
THICKNESS(mm)
WEIGHT(kg)
TOMEI SUS304 76.3 810 12 1.8
STD STEEL 60 620 13.8 2.5

APPLICATION : JZX100 / JZX110 / JZX110W / JZZ30 LATE MODEL / JZS171 / JZS171W



PART NO.:424001




TURBO : TOMEI ARMS M8280

TURBO : STD


WIDE MOUTH

Allows the exhaust gases to smoothly exit from the turbo without interference. The Lost Wax method was used for optimum strength and enhanced looks.

3 INCH (φ76.3mm) COMPATIBLE

120% increase over stock.
Greatly reduces the secondary exhaust gas pressure.

SKU 424001
Brand EXPREME
Shipping Weight 3.0000kg
Shipping Width 0.032m
Shipping Height 0.016m
Shipping Length 0.017m
Shipping Cubic 0.000009000m3
