TOMEI EXPREME Ti TITANIUM MUFFLER for S15 SR20DET, TOMEI, 440013

Calculate Shipping

Australia wide rate - $45.00

EXPREME Ti TITANIUM MUFFLER for (R)PS13/S14/S15

EXHAUST SYSTEM

With an overall dramatic performance improvement & weight reduction. The 180SX & Silvias are reborn.

High quality production, for true competition use without compromise. Only the best Titanium grade materials are used. From the special racing layout design, made as straight as possible, to the high flow silencer. We have poured our knowledge into it all. When you see our EXPREME Ti system, you can then understand that ours is unrivaled.

PRODUCT INFO

APPLICATION	P/N	NOTES
(R)PS13	440011	※FOR OFF ROAD USE ONLY.
S14	440012
S15	440013

FEATURE / SPEC

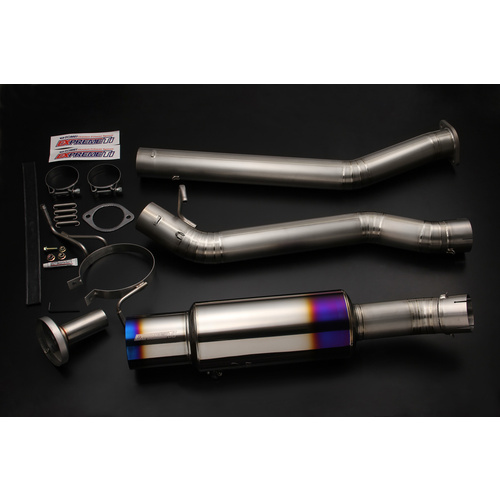

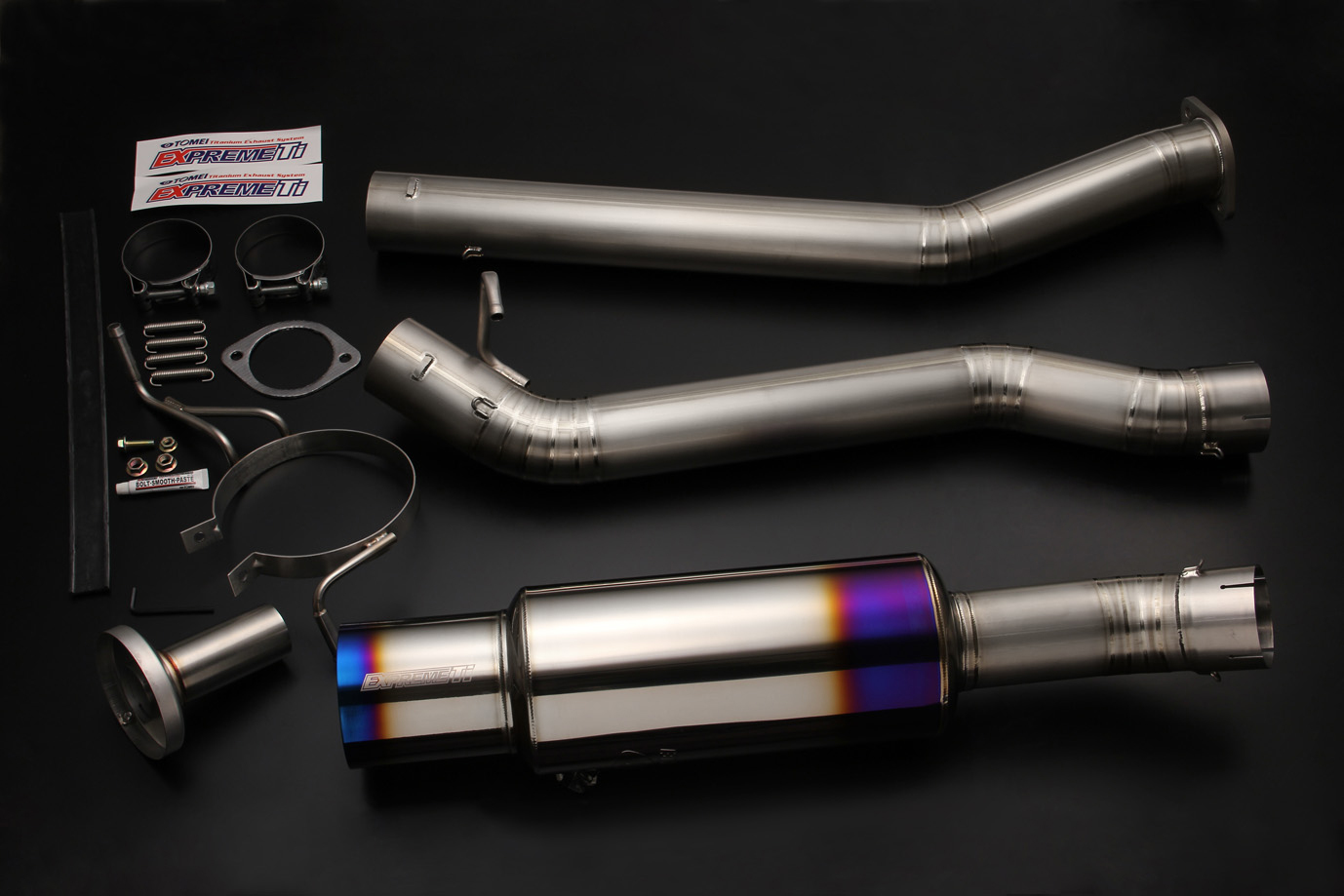

KIT CONTENTS

MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER ASSY (1)
FLANGE NUT M10 (2)
GASKET (1)
CLAMP BAND (2)
SPRING (4)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
FLANGE NUT M8 (1)
FLANGE BOLT M8 (1)
SOUND REDUCER (1)
ALLEN KEY (1)

SPEC

Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.

	(R)PS13		S14		S15
	TOMEI	STD	TOMEI	STD	TOMEI	STD
MATERIAL	TITANIUM	IRON	TITANIUM	IRON	TITANIUM	IRON
MAIN PIPE DIAMETER	Φ80.0	Φ54.0	Φ80.0	–	Φ80.0	Φ47-63.0mm
MAIN PIPE THICKNESS	1mm	1.5ｍｍ	1mm	–	1mm	1.5ｍｍ
SILENCER DIAMETER	Φ152	–	Φ152	–	Φ152	–
SILENCER THICKNESS	1mm	–	1mm	–	1mm	–
EXIT DIAMETER	Φ115	Φ38.1-×　2	Φ115	–	Φ115	Φ48.6-×　2
EXIT THICKNESS	1mm	–	1mm	–	1mm	–
FLANGE THICKNESS	8.0mm	8.0mm	8.0mm	8.0mm	8.0mm	8.0mm
WEIGHT	4.65kg	14.5kg	4.85kg	16.0kg	4.85kg	16.0kg
	9.85kg DROP!		11.15kg DROP!		11.15kg DROP!
