SKU: TOLEDO-225000

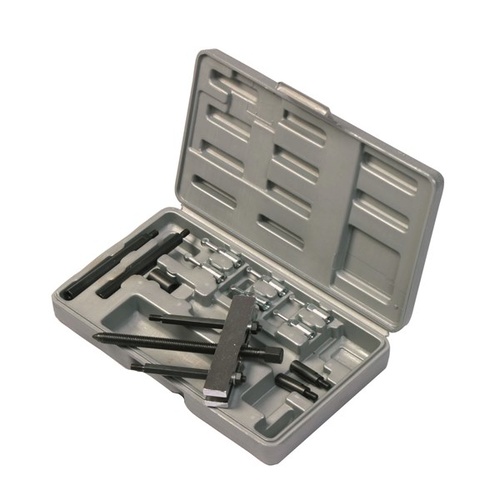

TOLEDO Twin Pull Puller Kit - Small 225000
PART NUMBER: 225000
Description
Twin Pull Mechanical Pullers
- Special pullers for the removal of blind housing bearings without the need to dismantle machinery or remove the running shaft
- Positive seating allows even tension on inner and outer bearing rings, reducing resistance
- Stabilisers reduce sideways movement and self centre the puller
- Three kits cover a wide range of ISO bearings. To identify kit for bearings without an ISO reference refer to puller spread and adaptor diameter
- Extensive range of spare parts available for all sets
- Special pullers for the removal of blind housing bearings without the need to dismantle machinery or remove the running shaft
- Positive seating allows even tension on inner and outer bearing rings, reducing resistance
- Stabilisers reduce sideways movement and self centre the puller
- Spread: 20-95mm
- Reach: 125mm
- Adaptor size: 5-8mm
- ISO bearing designation: 6004 - 6010 , 6299 - 6205 , 6300 - 6302
ITEM CONTENTS
Code | Name | Qty |
---|---|---|
225001 | Adaptor - 5mm | 1 |
225002 | Adaptor - 6mm | 1 |
225003 | Adaptor - 8mm | 1 |
225014 | Extension Rod - 90mm | 1 |
225011 | Forcing Screw - 125mm | 1 |
225013 | Main Rod - 100mm | 1 |
225016 | Sliding Twin Beam Internal - 100mm | 1 |
225010 | Thrust Nut | 1 |
Specifications
SKU | TOLEDO-225000 |
Brand | TOLEDO |
Shipping Weight | 4.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
