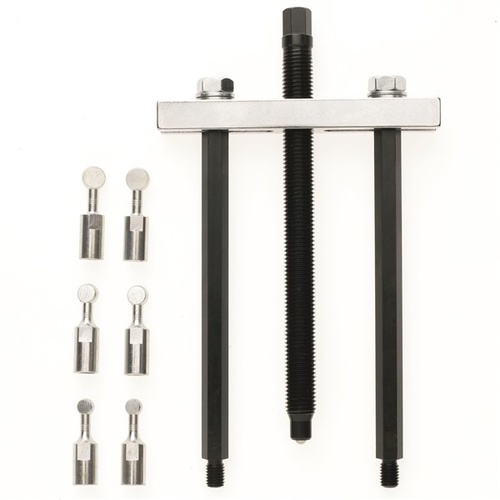

Twin Pull Mechanical Pullers

• Special pullers for the removal of blind housing bearings without the need to dismantle machinery or remove the running shaft
• Positive seating allows even tension on inner and outer bearing rings, reducing resistance
• Stabilisers reduce sideways movement and self centre the puller
• Three kits cover a wide range of ISO bearings. To identify kit for bearings without an ISO reference refer to puller spread and adaptor diameter
• Extensive range of spare parts available for all sets

• Special pullers for the removal of blind housing bearings without the need to dismantle machinery or remove the running shaft
• Positive seating allows even tension on inner and outer bearing rings, reducing resistance
• Stabilisers reduce sideways movement and self centre the puller
• Spread: 45-120mm
• Reach: 200mm
• Adaptor size: 9-12.5mm
• ISO bearing designation: 6207 - 6211 , 6305 - 6308 , 6403 - 6405

ITEM CONTENTS
