SKU: TOLEDO-304704
TOLEDO Toledo Timing Tool Kit - Citroen & Peugeot 304704
PART NUMBER: 304704
Description
Timing Tool Kits
- The Toledo Timing Tool range consists of uniquely designed engine timing and locking tool kits required for the servicing and repairs of modern passenger vehicle engines for the Australian and New Zealand vehicle car parc. Each kit has been designed to provide maximum market coverage for petrol and/or diesel vehicle applications in the servicing of timing belts, timing chain, gears and other engine repairs. Kits are available in master, popular and universal applications.
- The range has been developed for use within original manufacturer’s service specifications. As the timing tool kit must be compatible with the vehicle application, always refer to manufacturer’s service notes or bulletins to ensure correct servicing instructions. Each kit features an OEM tool identification guide to enable correct tool selection.
- The Toledo Timing Tool range is supported by a carefully compiled vehicle application list to enable correct kit selection
- NOTE: Incorrect tool use during repairs can lead to serious engine damage. Toledo recommends that repairs be carried out by a trained professional.
- Suitable for popular Peugeot and Citroen 1.4L – 2.2L petrol and 1.5L – 3.1L diesel engine applications
- For the locking of the camshafts and crankshaft during the removal and installation of the engine timing belt and other engine servicing and repairs
- *Additional tools may be required to complete repair
ATTRIBUTES
Fuel Type | Petrol & Diesel |
---|---|
Suits | Citroën: Berlingo II, C3 1.4L (TU3JP) 2002 - 2010 Berlingo, C2, C3, C4 1.6L (TU5JP4) 2003 - 2012 C4 2.0L (EW10J4S) 2005 - 2009 Ford: Fiesta 1.6L (TDCi) 2009 - 2012 Holden: Jackaroo 3.1L (4JG2) 1992 - 1998 Honda: Integra 1.8L (B18) 1993 - 2001 Mazda: Mazda 3 (Diesel) 2.0L (RF) 2007 - 2009 Peugeot: 206 CC, 307 1.6L (TU5JP4) 2001 - 2008 206 GTi, 307 2.0L (EW10J4,S) 1999 - 2008 307, 307CC 2.0L (EW10A) 2005 - 2009 406 1.6L (TU5JP) 1995 - 1999 406 2.0L (XU10J4) 1996 - 2004 306, 405, 406 (Diesel) 1.9L (XUD9) 1993 - 2001 406 (Diesel) 2.1L (XUD11) 1997 - 1999 407 2.2L (EW12) 2004 - 2009 Volvo C30 1.6L (Diesel) 2009 - 2012 *Abbreviated list only, for complete vehicle application listings please use the Tridon Part Finder |

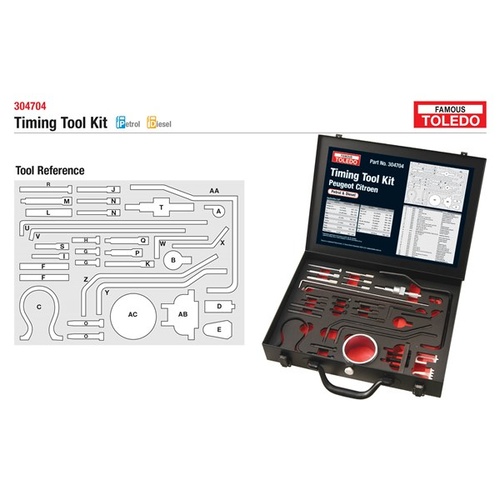

ITEM CONTENTS
Name | Qty |
---|---|
A - Tensioner Pulley Locking Pin | 1 |
B - Crankshaft Sprocket | 1 |
C - Timing Belt Retaining Clip | 1 |
D - Flywheel Locking Tool | 1 |
E - Flywheel Locking Tool | 1 |
F - Camshaft & Flywheel Timing Pins | 1 |
G - M8 x 1.25 x 30mm Bolt | 1 |
H - M8 x 1.25 x 40mm Bolt | 1 |
I - Camshaft Timing Pin | 1 |
J - Camshaft Sprocket Locking Pin | 1 |
K - Camshaft Locking Pin | 1 |
L - Crankshaft Locking Pin | 1 |
M - Camshaft Timing Pin | 1 |
N - Crankshaft Locking Pins | 1 |
O - Injection Pump Timing Pins | 1 |
P - Camshaft Timing Pin | 1 |
Q - Camshaft Timing Pin | 1 |
R - M8 x 1.25 Bolt | 1 |
S - Camshaft Timing Pin | 1 |
T - Flywheel Locking Tool | 1 |
U - Tensioner Pulley Locking Tool | 1 |
V - Tensioner Pulley Locking Tool | 1 |
W - Auxiliary Belt Tensioner Setting Tool | 1 |
X - Crankshaft Timing Pin | 1 |
Y - Crankshaft Timing Pin | 1 |
Z - Flywheel Timing Pin | 1 |
AA - Flywheel Timing Pin | 1 |
AB - Crankshaft Pulley Puller | 1 |
AC - Tensioner Pulley Adjusting Tool | 1 |
Specifications
SKU | TOLEDO-304704 |
Brand | TOLEDO |
Shipping Weight | 6.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
