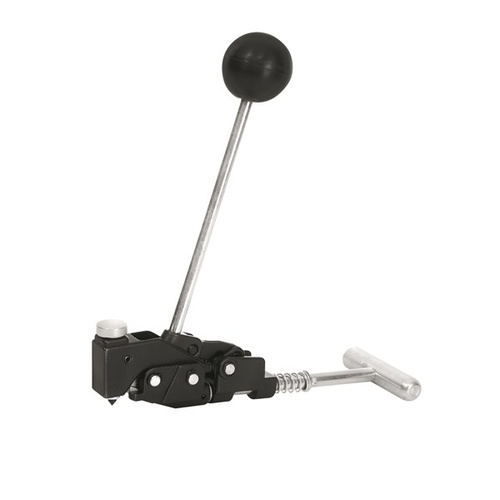

TOLEDO Preform Band Clamp Punch Tool, TOLEDO, TOLEDO-321002

Calculate Shipping

Australia wide rate - $25.00 (ETA: 3 days)

Hose Tools

Toledo has a comprehensive range of specialist hose and hose clamp tools to suit a wide variety of applications
Ideal for workshop and DIY use

Safely and quickly installs preform style clamp
Tool has tension, punch and cut off function
Supplied with complete operating instructions
For use on 15 and 16mm wide preform band clamp
Overall Length: 300mm

ATTRIBUTES

Instructions	Step 1: Load Clamp Push tension handle all the way forward. Insert the centre punch clamp tail all the way into the tool. Step 2: Tighten Clamp Tighten the clamp with short downward strokes. The tension handle should be in down position at completion of tightening the clamp If clamp tension needs to be released before locking, move the slide back against the spring. This will raise the pulling dog. Step 3: Lock Clamp Hold the tension handle down and lock the clamp by hitting punch at least twice with a 1kg mallet. Step 4: Remove Clamp Tail Hold the hose and jerk the tool back and forth until the clamp tail breaks off. Remove the excess tail from the tool by using the tension handle and pulling it through. When it has moved through the holding dog, raise the tension handle and pull tail free.
Spares	321002A??Replacement Punch

Instructions

Step 1: Load Clamp
Push tension handle all the way forward. Insert the centre punch clamp tail all the way into the tool.

Step 2: Tighten Clamp
Tighten the clamp with short downward strokes. The tension handle should be in down position at completion of tightening the clamp If clamp tension needs to be released before locking, move the slide back against the spring. This will raise the pulling dog.

Step 3: Lock Clamp
Hold the tension handle down and lock the clamp by hitting punch at least twice with a 1kg mallet.

Step 4: Remove Clamp Tail
Hold the hose and jerk the tool back and forth until the clamp tail breaks off. Remove the excess tail from the tool by using the tension handle and pulling it through. When it has moved through the holding dog, raise the tension handle and pull tail free.

Spares

321002A??Replacement Punch
