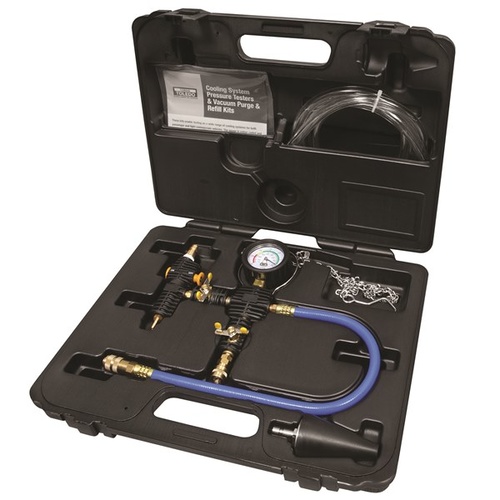

TOLEDO Cooling System Pressure Vacuum Refill Kit

Calculate Shipping

Australia wide rate - $20.00 (ETA: 3 days)

Cooling System Pressure Testers

Toledo offers a comprehensive range of cooling system pressure testers to suit many different types of automotive vehicles and heavy goods vehicles
Full vehicle application list is available

Vacuum purge and refill kit
User guide included

ATTRIBUTES

Instructions	Step 1: Pressure test cooling system to ensure no leaks. Step 2: Drain coolant from vehicle and flush if necessary. Step 3: Mount gauge assembly under bonnet using chain and hook. Step 4: Select correct cooling system adaptor and connect to cooling system ensuring a complete seal. Step 5: Ensure all taps and switches are in the off position. Connect the thin clear PVC drain tube to the gauge assembly directing overflow to bucket. Step 6: Connect airline to air inlet male airline brass fitting. Ensure tap is open then push on/off switch to the open position. Step 7: Once required vacuum is achieved turn tap to the off position and close the on/off switch. Step 8: Connect the coolant large clear hose to the assembly quick release fitting and insert into the replacement new coolant. Step 9: Turn tap to the on position to allow replacement coolant to be drawn into the cooling system. When gauge reading reaches zero disconnect assembly from the cooling system. Check coolant level and top up if required.

Instructions

Step 1:
Pressure test cooling system to ensure no leaks.

Step 2:
Drain coolant from vehicle and flush if necessary.

Step 3:
Mount gauge assembly under bonnet using chain and hook.

Step 4:
Select correct cooling system adaptor and connect to cooling system ensuring a complete seal.

Step 5:
Ensure all taps and switches are in the off position. Connect the thin clear PVC drain tube to the gauge assembly directing overflow to bucket.

Step 6:
Connect airline to air inlet male airline brass fitting. Ensure tap is open then push on/off switch to the open position.

Step 7:
Once required vacuum is achieved turn tap to the off position and close the on/off switch.

Step 8:
Connect the coolant large clear hose to the assembly quick release fitting and insert into the replacement new coolant.

Step 9:
Turn tap to the on position to allow replacement coolant to be drawn into the cooling system. When gauge reading reaches zero disconnect assembly from the cooling system. Check coolant level and top up if required.

ITEM CONTENTS

Code	Name	Qty
308559	Cooling System Tester Adaptor - Tapered Rubber Cone	1
308560	Cooling System Tester Adaptor - Hose Set	1
308558	Cooling System Tester Vacuum Filler Assembly	1
