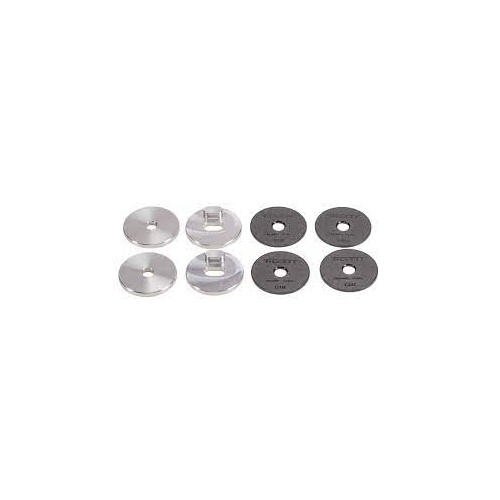

The TK8 fitting kit consists of spacers and washers to move a bracket set away from the leg bulge on a Tillett seat.

Because Tillett seats are narrow the brackets sit partially under the legs, so as the seat is dropped on the available slots and holes the seat and bracket can come into contact and the brackets must be moved outwards.

This kit has two TW12 pegged spacers included. These have a slot support peg, which fills the slot above or below the one used by the bolt. This stops the bolt from moving within the slot and bursting through from one slot to the other in the event of an extreme impact.

The 4mm thick spacers are made from machined aluminium keeping the assembly solid and uncompressible whilst the 2 mm thick Nylon shims give a small adjustment possibility.

Works with Tillett brackets which are a minimum of 5 mm thick and with adjacent front slots 12 mm apart. TBFIAO2, TBFIAO8, PTBi, PTBO.
