TERRATUFF SEPR8R Air Oil Separator FOR Nissan Patrol GU ZD 3.0

Inlet manifold pollution is the enemy of any diesel engine, particularly the Common Rail high efficiency engines that make up the majority of current 4x4s. To counter this Process West have developed the TERRATUFF SEPR8R, an advanced catch can system for your 4x4 that uses state of the art industrial filtration methods and integrates them into a seamless and properly engineered kit that will bolt directly to your 4x4.

TERRATUFF SEPR8R Design Philosphy

The heart of the Process West SEPR8R system is a uniquely designed Catch Can with a sophisticated internal filtration system that takes the oil polluted air coming from the rocker cover of your diesel and scrubs the oil mist from it before the gas then goes back into the inlet manifold. From the factory this 'air cleaning' doesn't take place, so the oil that comes out of the rocker cover ends up filling the intercooler and inlet system resulting in both reduced performance and economy over time.

TERRATUFF SEPR8R Installation

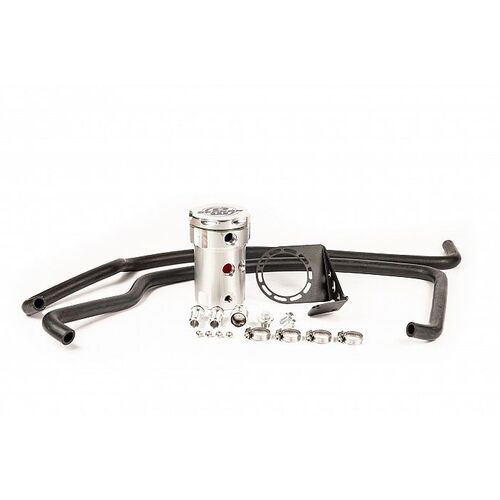

Each and every TERRATUFF SEPR8R comes as a complete bolt on kit to fit your specific vehicle (although a generic DIY version is also available). With the TERRATUFF SEPR8R kit you will receive the billet aluminium catch can with internal filtration system, a precision bracket to bolt into your engine bay, moulded hoses for 'plug and play' perfect fitment, along with the required clamps and mounting hardware. There is also a complete instruction booklet included with each and every TERRATUFF SEPR8R making its fitment a genuine DIY application.

TERRATUFF SEPR8R Technicial Specifications

TERRATUFF SEPR8R offers the following features

• Manufactured from Billet Aluminium with removable lid and filtration assembly of 650ml capacity
• Over Pressure relief valve incorporated to prevent system malfunction in the case of blockage
• Drain port incorporated into main housing with optional drain valve available
• Unique pleated stainless steel filtration system that is anti-clog, washable/reusable with low restriction 50um filtering
• Laser cut bracket specifically designed for each vehicle
• Moulded temperature resistance houses shaped for the engine bay of each vehicle
• High quality clamps and mounting hardware
• Installation instructions included

TERRATUFF SEPR8R Specific Vehicle Applications

TERRATUFF SEPR8R is currently available for - (more vehicles being added monthly)

• Generic catch can
• Ford PX/PX2 Ranger and Mazda BT50
• Toyota N70 Hilux 2008 to 2015
• Toyota N80 Hilux/Fortuna 2016+
• Toyota Landcruiser LC200
• Nissan Navara NP300
• Mitsubishi Triton MN
• Mitsubishi Triton MQ
• Holden Colorado RG
• 76,78,79 Series Landcruiser
• Amarok 2010+ 4 cyl
• Amarok 17+ V6
• MY13-16.5 Dmax (non DPF)
• MY16.5+ Dmax (DPF)
• Dodge Ram 2010+ 6.7 Cummins
• NX Pajero
• Nissan Patrol GU/ZD30
• Nissan Navara D40 4cyl
• 16+ DPF Isuzu MUX
• PX 3 Ranger 2.0L
