SYKES PICKAVANT Multipull® Blind Housing Bearing Remover Medium 98100
Part number: 98100
Description
Please purchase the item according to the part number
Item: SYKES PICKAVANT Multipull® Blind Housing Bearing Remover Medium 98100
Part Number: 98100
Blind Housing Bearing Pullers
- These special pullers will remove blind housing bearings without the need to dismantle machinery or remove the running shaft
- Positive seating allows even tension on inner and outer bearing rings, reducing resistance
- Stabilisers reduce sideways movement and self-centre the puller
- Three kits cover a wide range of ISO bearings. (To identify kit for bearings without an ISO reference, refer to puller spread and adaptor diameter)
- Supplied in blow mould case
- Min Spread: 20mm
- Max Spread: 117mm
- Adaptor Diameter: 5.5-12.5mm
- Puller Reach: 415mm
- ISO Bearing Designation: 6004 - 6015, 6200 - 6211, 6300 - 6307, 6403 - 6404

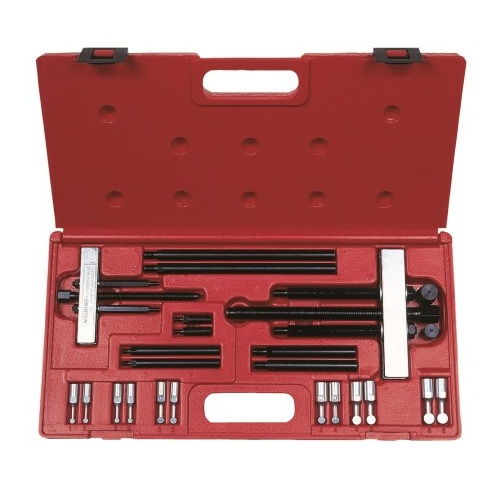

ITEM CONTENTS
Code | Name | Qty |
---|---|---|
098012 | Beam | 1 |
098112 | Beam | 1 |
098011 | Screw | 1 |
082811 | Forcing Screw | 1 |
098015 | Rod Assembly | 1 |
098115 | Rod Assembly | 1 |
098017 | Rod Extension (95mm) | 1 |
098019 | Rod Extension (30mm) | 1 |
098119 | Rod Extension (95mm) | 1 |
098120 | Rod Extension (195mm) | 1 |
098021 | Bearing Adaptor No.1 (5.5mm) | 1 |
098022 | Bearing Adaptor No.2 (6mm) | 1 |
098023 | Bearing Adaptor No.3 (8mm) | 1 |
098124 | Bearing Adaptor No.4 (9mm) | 1 |
098125 | Bearing Adaptor No.5 (11mm) | 1 |
098126 | Bearing Adaptor No.6 (12.5mm) | 1 |
SYKES-PICKAVANT
Since 1921 Sykes-Pickavant has been manufacturing and distributing premium quality service tools with numerous applications in the field of automotive, industrial, general engineering, maintenance and repair work.
Over ninety years on Sykes-Pickavant continues to innovate with new products while ensuring core ranges are modernised to stay at the forefront of technologies in vehicle and equipment design.
With over 450 part numbers now in the range including the renowned mechanical and hydraulic pullers, Sykes-Pickavant continues to offer the highest quality products relevant to today's industries.
Specifications
SKU | SYKES-98100 |
Brand | SYKES PICKAVANT |
Shipping Weight | 3.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
