SYKES PICKAVANT 50 Tonne Hydraulic Jack Kit 200153, SYKES PICKAVANT, SYKES-200153

Calculate Shipping

Australia wide rate - $20.00 (ETA: 3 days)

Please purchase the item according to the part number

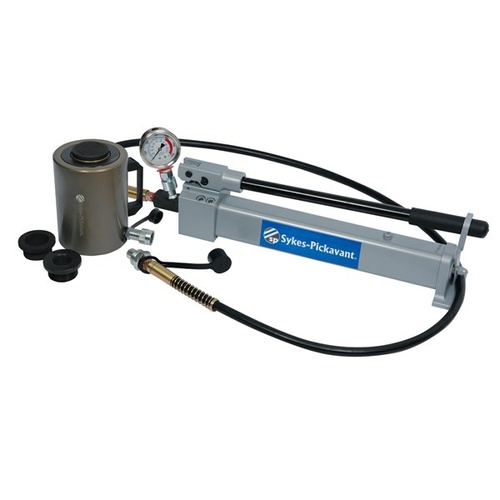

Item: SYKES PICKAVANT 50 Tonne Hydraulic Jack Kit 200153

Part Number: 200153

20T, 30T & 50T

Hydraulic jack and press frame arrangements are configured using the light weight 200170 Two Speed Aluminium Hydraulic Pump ensuring maximum portability
Available in 20, 30 and 50 tonne kits to accommodate a broad spectrum of uses and applications such as mining, construction, steel erecting and rescue
Cylinders must be placed in a position to provide a straight direct lift to avoid extreme side loading which can damage the internal sleeve

50 tonne jacking system for incremental movement of heavy loads
Aluminium cylinder, single acting hollow plunger with spring return
Supplied in metal case

ITEM CONTENTS

Code	Name	Specifications	Qty
200170	Two Speed Aluminium Pump	Pressure Rating: 1st Stage 13.8 Bar, 2nd Stage 700 Bar Oil Volume Per Stroke: 1st Stage 12.9cc, 2nd Stage 2.3cc Oil Capacity: 1000cc Weight: 3.5kg Length: 542mm Width: 110mm Depth: 135mm	1
200150	50T Hydraulic Cylinder	Max Working Pressure: 700 Bar Oil Capacity: 368cc Diameter: 160mm Stroke: 50mm Operating Range: 212 - 262mm	1

SYKES-PICKAVANT

Since 1921 Sykes-Pickavant has been manufacturing and distributing premium quality service tools with numerous applications in the field of automotive, industrial, general engineering, maintenance and repair work.

Over ninety years on Sykes-Pickavant continues to innovate with new products while ensuring core ranges are modernised to stay at the forefront of technologies in vehicle and equipment design.

With over 450 part numbers now in the range including the renowned mechanical and hydraulic pullers, Sykes-Pickavant continues to offer the highest quality products relevant to today's industries.
