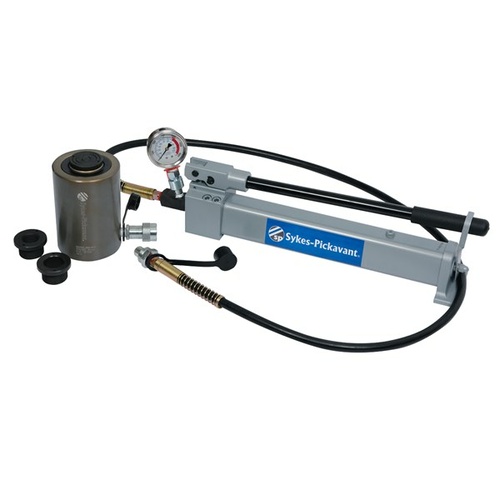

SYKES PICKAVANT 30 Tonne Hydraulic Jack Kit 200141
Part number: 200141
In Stock
Description
Please purchase the item according to the part number
Item: SYKES PICKAVANT 30 Tonne Hydraulic Jack Kit 200141
Part Number: 200141
20T, 30T & 50T
- Hydraulic jack and press frame arrangements are configured using the light weight 200170 Two Speed Aluminium Hydraulic Pump ensuring maximum portability
- Available in 20, 30 and 50 tonne kits to accommodate a broad spectrum of uses and applications such as mining, construction, steel erecting and rescue
- Cylinders must be placed in a position to provide a straight direct lift to avoid extreme side loading which can damage the internal sleeve
- 30 tonne jacking system for incremental movement of heavy loads
- Aluminium cylinder, single acting hollow plunger with spring return
- Supplied in metal case
ITEM CONTENTS
Code | Name | Specifications | Qty |
---|---|---|---|
200170 | Two Speed Aluminium Pump | Pressure Rating: 1st Stage 13.8 Bar, 2nd Stage 700 Bar Oil Volume Per Stroke: 1st Stage 12.9cc, 2nd Stage 2.3cc Oil Capacity: 1000cc Weight: 3.5kg Length: 542mm Width: 110mm Depth: 135mm | 1 |
200130 | 30T Hydraulic Cylinder | Max Working Pressure: 700 Bar Oil Capacity: 310cc Diameter: 117mm Stroke: 65mm Operating Range: 178.5 - 243.5mm | 1 |
SYKES-PICKAVANT
Since 1921 Sykes-Pickavant has been manufacturing and distributing premium quality service tools with numerous applications in the field of automotive, industrial, general engineering, maintenance and repair work.
Over ninety years on Sykes-Pickavant continues to innovate with new products while ensuring core ranges are modernised to stay at the forefront of technologies in vehicle and equipment design.
With over 450 part numbers now in the range including the renowned mechanical and hydraulic pullers, Sykes-Pickavant continues to offer the highest quality products relevant to today's industries.
Specifications
SKU | SYKES-200141 |
Brand | SYKES PICKAVANT |
Shipping Weight | 3.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
